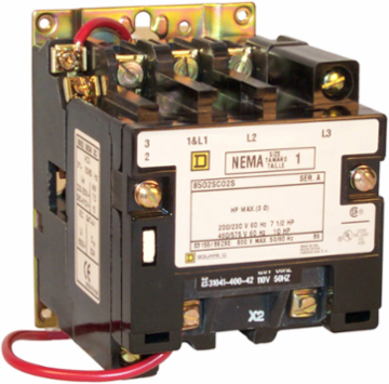

Square D 8502SCO2V03 NEMA Size 1 Contactor, 27A, 10HP, 240VAC Coil, 3-Pole, Open
- MPN: 8502SCO2V03
- UPC: 785901764038
- PPN: SCH-8502SCO2V03
CAD
$914.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

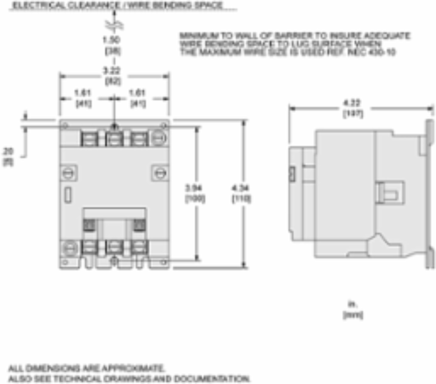

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 220/240 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Compliance
- TAA Compliant
- Depth
- 107.19 mm
Country of OriginFrance, Mexico, United States, ZZ
Complementary Attributes
- Rated Power In Hp
- 7.5 HP 200 V AC, 7.5 HP 230 V AC10 HP 460 V AC, 10 HP 575 V AC
- Line Rated Current
- 27 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.591863722781034
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 8.759160434676387
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Contactor Application
- non-reversing
- Control Type
- no control units
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- fuse not supplied
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 54
- Width Nominal
- 81.79 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.479 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.4274126495676723, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.29571063107222256, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]422 kg CO2 eq., 421.5869519305879
Local Publishable Date2025-11-18
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Circuitcommon control circuit
Electrical Connectionscrew clamp terminals
Local Signallingno indicator
Phase3 phase
Product Or Component Typecontactor
Range Of Product8502S
Software Versionv6.2.4
Total Lifecycle Carbon Footprint434 kg CO2 eq.
Pep CodeENVPEP2506044EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal110.24 mm
[Uc] Control Circuit Voltage240 V AC 60 Hz220 V AC 50 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- Product Compatibility
- circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V ACfuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 433.6610993686852
- Eu Rohs Directive
- Not compliant
- Nema Size
- 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2506044EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP2506044EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Phase
- 3 phase
- Provided Equipment
- fuse not supplied
Product Or Component Typecontactor
Range Of Product8502S
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
