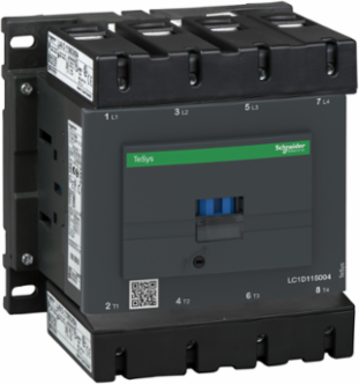

Schneider Electric LC1D115004M7 TeSys Deca Contactor 4P 200A 440V 220V AC Coil
- MPN: LC1D115004M7
- PPN: SCH-LC1D115004M7
CAD
$1337.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 200A/1000V AC-1. They can be used to create motor starters for almost any type of application. It provides a 220V 50/60Hz AC coil with transient suppressor module, power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (150mm width), mounting on 2 DIN-rails or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 5.91 inches wide and 5.20 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
| Depth | 132 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC 50/60 Hz |
|---|---|
| Irms Rated Making Capacity | 1260 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Breaking Capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Control Circuit Voltage Limits | 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz1...1.15 Uc (55-70 °C):operational AC 50/60 Hz |
|---|---|
| Maximum Operating Rate | 2400 cyc/h at 60 °C |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Inrush Power In Va | 280-350 VA 60 Hz cos phi 0.8 (at 20 °C), 280-350 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Mounting Support | rail, plate |
| Utilisation Category | AC-3, AC-3e, AC-1, AC-4 |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1 |
| Hold-in Power Consumption In Va | 2-18 VA 60 Hz cos phi 0.3 (at 20 °C), 2-18 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 5.063122083295763, 5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 25.42976168377488 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI100405EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Compatibility Code | LC1D |
| Contactor Application | resistive load |
| Electrical Durability | 0.8 Mcycles 200 A AC-1 <= 440 V |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Durability | 8 Mcycles |
| Operating Time | 6...20 ms opening20...50 ms closing |
| Pole Contact Composition | 4 NO |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | THIEC 60068-2-30 |
| Range Of Product | TeSys Deca |
| Safety Reliability Level | B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP0603001EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 54 |
| Width Nominal | 150 mm |
| [Ie] Rated Operational Current | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Package Weight(Lbs) | 2.971 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 6 Gn for 11 ms) |
| Tightening Torque | control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2 |
| Certificate Agency | CCC, RINA, GOST, UL, CSA, LROS (Lloyds register of shipping), BV, GL, DNV, UKCA |
| Connections - Terminals | control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable endpower circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 1 10-120 mm² - cable stiffness: solid without cable endpower circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end, power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.859021505025635, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3 kg CO2 eq., 0.3036665300058981 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 187 kg CO2 eq., 187.29208633093518 |
| Local Publishable Date | 2026-07-12 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Associated Fuse Rating | 250 A gG at <= 690 V coordination type 1 for power circuit200 A gG at <= 690 V coordination type 2 for power circuit |
| Coil Technology | built-in bidirectional peak limiting diode suppressor |
| Contact Compatibility | M14 |
| Device Short Name | LC1D |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Heat Dissipation | 3-8 W at 50/60 Hz |
| Number Of Poles | 4P |
| Overvoltage Category | III |
| Power Dissipation Per Pole | 24 W AC-1 |
| Product Or Component Type | contactor |
| Range | TeSys |
| Returnability | No |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 219 kg CO2 eq. |
| Control Circuit Voltage 18 | 220 V AC 50/60 Hz |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3NO, a control circuit voltage 230V AC, a power circuit voltage 1000V and a rated operational current 150 A. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2803.2 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 158 mm |
| [Icw] Rated Short-time Withstand Current | 250 A 40 °C - 10 min for power circuit550 A 40 °C - 1 min for power circuit950 A 40 °C - 10 s for power circuit1100 A 40 °C - 1 s for power circuit |
| [Ith] Conventional Free Air Thermal Current | 200 A (at 60 °C) for power circuit |
| [Ue] Rated Operational Voltage | power circuit <= 1000 V AC 25...400 Hzpower circuit <= 460 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
