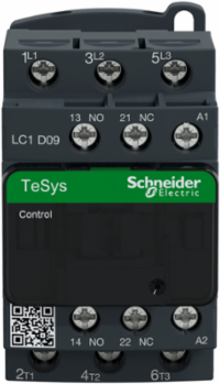

Schneider Electric LC1D09X7 TeSys Deca Contactor, 3P, 9A, 600V AC Coil, IP20, Compact
- MPN: LC1D09X7
- PPN: SCH-LC1D09X7
CAD
$164.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 600V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Rated for 9 Amps under AC-3 utilization categories (4 kW at 400V), this heavy-duty contactor is perfectly sized for managing small-to-medium three-phase industrial motors. It delivers dependable, repetitive switching for high-inrush loads like exhaust fans, conveyor belts, and centrifugal pumps, preventing contact welding and premature component fatigue.
- quipped with an "X7" designated 600V AC $50/60\text{ Hz}$ control coil, this device integrates directly into heavy industrial power distribution networks common in Canadian manufacturing plants. This high-voltage coil configuration eliminates the cost, space, and wiring complexity of adding an auxiliary step-down control transformer inside your automation enclosure.
- Built with one Normally Open (NO) and one Normally Closed (NC) auxiliary contact as standard, this contactor provides instant feedback signals to your control system. This dual-state architecture allows panel builders to simultaneously wire a mechanical safety interlock and send a run-status confirmation signal back to a PLC or remote indicator light.
- Part of the highly modular TeSys Deca ecosystem, the LC1D09X7 snaps directly onto standard 35 mm DIN rails and interfaces seamlessly with LRD09 thermal overload relays. This component interoperability allows maintenance teams to assemble space-saving, code-compliant motor starters with plug-and-play ease, minimizing inventory overhead and reducing panel footprint.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
- Utilisation Category
- AC-3, AC-4, AC-1, AC-3e
- Making Capacity
- 250 A at 440 V (power circuit)
- Rated Short-time Withstand Current
- 105 A (10 s), 210 A (1 s) at 40 °C
- Operating Temperature Range
- -40 to 60 °C, up to 70 °C with derating
- Height
- 77 mm
- Depth
- 86 mm
- Poles
- 3P
- Auxiliary Contacts
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Contact Tightening Torque
- 1.7 N.m screw clamp terminals
- Heat Dissipation
- 2-3 W at 50/60 Hz
- Operating Time
- 12-22 ms closing, 4-19 ms opening
- Pvc Free
- Yes
- Safety Reliability Level
- B10d = 1,369,863 cycles with nominal load EN/ISO 13849-1, B10d = 20,000,000 cycles mechanical load EN/ISO 13849-1
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz for power circuit
- Mechanical Durability
- 15 million cycles
- Reach Free Of Svhc
- Yes
- Rated Breaking Capacity
- 250 A at 440 V for power circuit IEC 60947
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Compatibility Code
- LC1D
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Electrical Durability
- 2 million cycles at 9 A AC-3, 0.6 million cycles at 25 A AC-1
- Control Circuit Type
- AC 50/60 Hz
- Inrush Power
- 70 VA at 60 Hz
- Fire Resistance
- 850 °C IEC 60695-2-1
Maximum Motor Power4 kW at 400 V AC (AC-3)
Control Circuit Voltage600 V AC 50/60 Hz
Thermal Current (Ith)25 A (power circuit at 60 °C), 10 A (signalling circuit at 60 °C)
Breaking Capacity250 A at 440 V (power circuit)
Impulse Withstand Voltage6 kV IEC 60947
Maximum Operating Rate3600 cycles/hour at 60 °C
Width45 mm
Weight0.32 kg
Contact Configuration3 NO
Mountingrail or plate
Coil Technologywithout built-in suppressor module
Non-Overlap Time1.5 ms on energisation and de-energisation between NC and NO contact
Protective TreatmentTHIEC 60068-2-30
Control Circuit Voltage Limits0.3-0.6 Uc -40-70 °C drop-out AC 50/60 Hz; 0.8-1.1 Uc -40-60 °C operational AC 50 Hz; 0.85-1.1 Uc -40-60 °C operational AC 60 Hz; 1-1.1 Uc 60-70 °C operational AC 50/60 Hz
Product CertificationsCSA, RINA, CCC, UL, GL, BV, GOST, LROS, DNV, UKCA
Associated Fuse Rating10 A gG signalling circuit IEC 60947-5-1, 25 A gG <= 690 V coordination type 1 power circuit, 20 A gG <= 690 V coordination type 2 power circuit
China ROHS RegulationPro-active China RoHS declaration
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1
Insulation Voltage690 V power circuit IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp terminals flat Ø 6 mm, Philips No 2, Pozidriv No 2
Protective Coverwith
Warranty18 months
Auxiliary Contact Composition1 NO + 1 NC
Hold-in Power Consumption7.5 VA at 60 Hz
Flame RetardanceV1 UL 94
Environmental Operating Altitude0 to 3000 m
