Schneider Electric CA2KN31G7 TeSys K Control Relay, 3NO+1NC, 120V AC, 600V, 0.40 lbs
- MPN: CA2KN31G7
- PPN: SCH-CA2KN31G7
CAD
$128.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys K IEC industrial control relays are used in industrial control circuits. This Type K control relays has 3 normally open and 1 normally closed contacts. The contacts have AC-15 and DC13 contact ratings. Type K control relays can be mounted on 35mm DIN rail or can be mounted directed to a panel. The relay has a 120 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The relay is 2.28 inches tall, 1.77 inches wide and 2.24 inches deep. It weighs 0.40 lbs. This control relay is UL Listed and CSA certified.
Features
- Consisting of 3 Normally Open (NO) and 1 Normally Closed (NC) contacts. This specific 3NO+1NC composition allows for efficient multi-circuit control and simultaneous status feedback signals, eliminating the need to stack extra auxiliary contact blocks for standard logic loops.
- Driven by a high-efficiency 120V AC 50/60Hz electromagnetic coil that drop-in replaces legacy control elements without modifications to your existing 120VAC automation systems. The low-consumption coil draws only 30 VA during inrush and drops to a steady 4.5 VA hold-in, minimizing panel heat generation and reducing power supply strain.
- Rated for continuous thermal currents up to 10 Amps at operational voltages up to 690VAC, adhering strictly to heavy-duty AC-15 and DC-13 utilization categories. Built for rugged industrial environments, its contacts deliver a robust mechanical life of 10 million cycles, keeping your production machinery online and reducing costly preventative maintenance downtime.

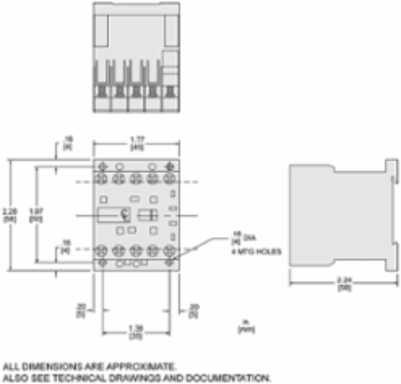

- Engineered with a highly compact TeSys K miniature profile, measuring just 1.77 inches wide, 2.28 inches high, and 2.24 inches deep. It supports dual-purpose installation via standard 35mm DIN rail snapping or direct panel-surface screw mounting, giving panel builders maximum flexibility when optimizing high-density backplate footprints.
- Outfitted with robust, finger-safe IP2X screw clamp terminals that accept solid or flexible wiring (from 0.34 to 4 mm2) and deliver a secure 1.3 N.m tightening torque. These deep-set terminals prevent accidental contact shocks and ensure highly reliable, gas-tight wire terminations that will not vibrate loose in demanding industrial environments.
- Fully certified to global standards including UL 60947-5-1, CSA C22.2, CE, UKCA, and IEC 60947. This extensive regulatory backing streamlines facility inspections, overcomes strict engineering objections, and guarantees seamless integration into export-ready control panels.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, United States, ZZ
Depth57 mm
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
- Irms Rated Making Capacity
- 110 A IEC 60947
- Minimum Switching Current
- 5 mA
Control Circuit TypeAC 50/60 Hz
Maximum Operating Rate10000 cyc/h
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor open10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
- Operating Time
- 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening
- Utilisation Category
- DC-13, AC-15
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
- Connections - Terminals
- screw clamp terminals 2 0.34-1.5 mm²flexible without cable endscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible with cable end, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-1.5 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.25617272259369844, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.91401512148607
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503003
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2448
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contactor Application
- control circuit
- Heat Dissipation
- 1.3-1.3 W
- Inrush Power In Va
- 30-30 VA (at 20 °C)
- Mechanical Durability
- 10 Mcycles
- Pole Contact Composition
- 3 NO + 1 NC
- Product Name
- TeSys CAK
- Protective Treatment
- TC IEC 60068
- Range Of Product
- TeSys K control relay
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 59 kg CO2 eq.
- Pole Contact Comp
- 3 NO + 1 NC
- Control Circuit Voltage 21 Control Circuit Voltage
- 120 V
- Pep Code
- ENVPEP1503003EN
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 63
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Flame RetardanceV1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Mounting Supportrail, plate
Tightening Torque1.3 N.m screw clamp terminals flat Ø 6 mm, 1.3 N.m screw clamp terminals Philips No 2 6 mm, 1.3 N.m screw clamp terminals pozidriv No 2
Certificate AgencyCB Scheme, CCC, UL, CSA, EAC, CE, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947, 750 V VDE 0110 group C, 690 V BS 5424, 600 V CSA C22.2 No 14
Carbon Footprint Of The Distribution Phase [A4]0.35276280880753375, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.024250978113109528
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]58 kg CO2 eq., 57.502201472752766
Local Publishable Date2026-03-25
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeCA2K
Device Short NameCA2K
Immunity To Microbreaks2 ms
Insulation Resistance> 10 MOhm> 10 MOhm
Non Overlap Distance0.5 mm
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecontrol relay
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21120 V
Connections Terminals 55 Connections Terminalsscrew clamp terminals
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh142.2624
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal58 mm
[Ith] Conventional Free Air Thermal Current10 A (at 50 °C)
Hold-in Power Consumption In Va4.5-4.5 VA (at 20 °C)
Package Weight(Lbs)178.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 59.04940310375318
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1503003EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-50-80 °C, -50-80 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys K control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
