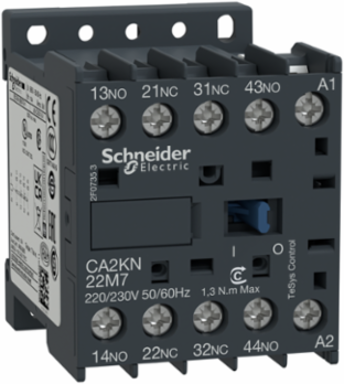

Schneider Electric CA2KN22F7 TeSys K Control Relay 4P (2NO+2NC) 690V 110V AC
- MPN: CA2KN22F7
- PPN: SCH-CA2KN22F7
CAD
$128.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- Product Or Component Type
- control relay
- Range
- TeSys
- Utilisation Category
- DC-13 || AC-15
Control Circuit TypeAC 50/60 Hz
Contactor Applicationcontrol circuit
Product NameTeSys CAK
Pole Contact Composition2 NO + 2 NC
Device Short NameCA2K
Complementary
- Minimum Switching Current
- 5 mA
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C) || operational: 0.8...1.15 Uc (at <50 °C)
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 50 °C)
- Immunity To Microbreaks
- 2 ms
- Irms Rated Making Capacity
- 110 A IEC 60947
- Net Weight
- 0.18 kg
- Connections - Terminals
- screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
- Maximum Operating Rate
- 10000 cyc/h
- Mechanical Durability
- 10 Mcycles
- Operating Time
- 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing || 15...25 ms coil de-energisation and NC closing || 5...15 ms coil energisation and NC opening
- Depth
- 57 mm
- Heat Dissipation
- 1.3-1.3 W
Height58 mm
Non Overlap Distance0.5 mm
Mounting Supportplate || rail
Insulation Resistance> 10 MOhm
Associated Fuse Rating10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660
Inrush Power In Va30-30 VA (at 20 °C)
Minimum Switching Voltage17 V
Tightening Torque1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Hold-In Power Consumption In Va4.5-4.5 VA (at 20 °C)
Width45 mm
[Ui] Rated Insulation Voltage690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -25-50 °C
- Flame Retardance
- V1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
- Protective Treatment
- TC IEC 60068
- Operating Altitude
- 2000 m without derating
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
StandardsEN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Ambient Air Temperature For Storage-50-80 °C
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
