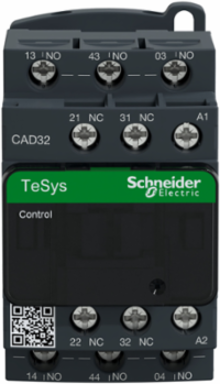

Schneider Electric CAD32U7 TeSys Deca Control Relay 3NO+2NC 240V AC 10A 180 cyc/mn

MPN: CAD32U7
PPN: SCH-CAD32U7

$113.03

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Features

Built with a 5-pole contact array consisting of 3 Normally Open (NO) and 2 Normally Closed (NC) contacts, this control relay manages multi-path signaling simultaneously. It gives automation technicians the exact logic flexibility required to design safe machinery cross-locks, state indicators, and feedback loops without adding extra terminal relays.
Equipped with a standard 240V AC coil optimized for both 50 Hz and 60 Hz frequencies, this device integrates directly into localized industrial control circuits. The wide operating threshold safeguards against voltage drops and fluctuating utility power, reducing the risk of unexpected drop-outs or chatter on heavily loaded factory lines.
Engineered for high-performance applications, this mechanical relay operates flawlessly at cycle speeds reaching up to 180 repetitions per minute. This accelerated response time allows control engineers to seamlessly implement the module into rapid packaging machinery, sorters, and high-duty material handling environments without suffering contact degradation.
Boasting a robust design certified for up to 30 million mechanical operating cycles, this heavy-duty component drastically extends your equipment maintenance intervals. It features a built-in 1.5 millisecond non-overlap window between the NO and NC poles to ensure clean state transitions, directly preventing internal signal collisions and premature tip wear.
With an ultra-compact overall frame width of just 45mm, this TeSys Deca series module matches the standard profile of miniature industrial contactors. It features a universal dual-mounting base that clips directly onto a standard 35mm DIN rail or fastens via panel screws, minimizing cabinet space constraints and simplifying point-to-point field retrofits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Indonesia, Mexico, United States

Depth	84 mm

Complementary Attributes

Control Circuit Voltage Limits	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity	140 A AC IEC 60947-5-1250 A DC IEC 60947-5-1
Minimum Switching Current	5 mA

Control Circuit Type	AC 50/60 Hz
Maximum Operating Rate	180 cyc/mn
Minimum Switching Voltage	17 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Mechanical Robustness	shocks control relay open10 Gn for 11 ms IEC 60068-2-27shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Range	TeSys, TeSys Deca
Utilisation Category	AC-14, DC-13, AC-15
[Ue] Rated Operational Voltage	<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
Connections - Terminals	screw clamp terminals 2 1-2.5 mm²flexible with cable endscrew clamp terminals 2 1-4 mm²solid without cable endscrew clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.2688271654154445, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.4052974453589133
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1501004
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	CAD
Device Short Name	CAD
Insulation Resistance	> 10 MOhm> 10 MOhm
Operating Time	12...22 ms coil energisation and NO closing4...12 ms coil de-energisation and NO opening4...19 ms coil energisation and NC opening6...17 ms coil de-energisation and NC closing
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	control relay
Range Of Product	TeSys D control relay
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	18 kg CO2 eq.
Pole Contact Comp	3 NO + 2 NC
Connections Terminals 55 Connections Terminals	screw clamp terminals
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	170.82
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	77 mm
[Icw] Rated Short-time Withstand Current	100 A - 1 s120 A - 500 ms140 A - 100 ms
[Uc] Control Circuit Voltage	240 V AC 50/60 Hz
Hold-in Power Consumption In Va	8-8 VA 50 Hz (at 20 °C)
Package Weight(Lbs)	344.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Mounting Support	rail, plate
Tightening Torque	1.7 N.m screw clamp terminals Philips No 2, 1.7 N.m screw clamp terminals flat Ø 6 mm, 1.7 N.m screw clamp terminals pozidriv No 2
Certificate Agency	CB, CCC, UL, CSA, EAC, CE, UKCA
[Ui] Rated Insulation Voltage	600 V UL, 600 V CSA690 V IEC 60947-5-1
Non-overlap Time	1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.09473546449819852
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	15 kg CO2 eq., 15.364183683872902
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG conforming to IEC 60947-5-1
Contactor Application	control circuit
Inrush Power In Va	70-70 VA 50 Hz (at 20 °C)
Mechanical Durability	30 Mcycles
Pole Contact Composition	3 NO + 2 NC
Product Name	TeSys CAD
Protective Treatment	TH IEC 60068
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21	240 V AC 50/60 Hz
Pep Code	ENVPEP1501004EN
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %	66
Width Nominal	45 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-60 °C-40-60 °C60-70 °C with derating
Environmental Disclosure	ENVPEP1501004EN
Ip Degree Of Protection	IP2X front face VDE 0106
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	18.13304375914546
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1501004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
