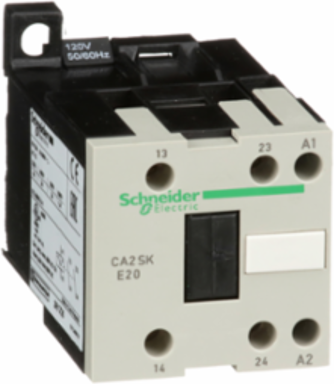

Schneider Electric CA2SKE20G7 TeSys SK Control Relay 2P (2NO), 120V AC Coil, IP2X, 10 A
- MPN: CA2SKE20G7
- PPN: SCH-CA2SKE20G7
CAD
$201.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys SK mini-control relay, with alternating contacts, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is provided with a 120V 50/60Hz AC control circuit, connection by screw terminals Relay has 2 NO contacts. TeSys SK industrial control relays have a 10 ampere resitive ratinga and a NEMA A600 rating. Relays have screw clamp terminals. TeSys SK industrial control relays are UL Listed and CSA certified.
Features
- The Schneider CA2SKE20G7 is a 2-pole, compact industrial control relay from the TeSys SK range. It is designed for low-power switching applications, signaling, and interlocking within control circuits. Because of its small footprint, it is a favorite for machine builders who need to save space on a DIN rail.
- The "20" in the part number indicates the contact arrangement: 2 NO (Normally Open) contacts. These contacts are instantaneous, meaning they move the moment the coil is energized. This specific model is ideal for applications where you need to trigger two separate control signals or pilot lights simultaneously.
- The "G7" suffix specifies the coil voltage required to operate the relay. This unit runs on 120V AC at 50/60 Hz. This is the standard control voltage for most North American industrial panels, allowing the relay to be integrated easily without the need for additional control transformers.
- The TeSys SK series is significantly smaller than the standard TeSys D or K relays. Measuring only 27mm wide, it is one of the most space-efficient 2-pole relays on the market. It can be mounted on a standard 35mm DIN rail or screwed directly to a mounting plate.
- While compact, the CA2SKE20G7 is rated for a conventional thermal current (Ith) of 10 Amps. It is designed for control circuit tasks (AC-15 or DC-13 duties) rather than driving large motors directly. It is typically used to bridge the gap between a low-power PLC output and a larger contactor or solenoid.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, United States |
|---|
| Depth | 68 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC 50/60 Hz |
|---|---|
| Maximum Operating Rate | 1200 cyc/h |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc (at <50 °C)operational: 0.85...1.1 Uc (at <50 °C) |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Associated Fuse Rating | 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947 |
| Utilisation Category | AC-15, DC-13 |
| [Ue] Rated Operational Voltage | <= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz |
| Connections - Terminals | screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end, screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable endscrew clamp terminals 1 0.35-6 mm²flexible with cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.26049024039022145 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.9 kg CO2 eq., 0.9294198707245992 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1503003 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | CA2SKE |
| Device Short Name | CA2SKE |
| Inrush Power In Va | 23-23 VA (at 20 °C) |
| Operating Time | 6...8 ms coil de-energisation and NO opening7...14 ms coil energisation and NO closing |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | control relay |
| Range | TeSys |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 58 kg CO2 eq. |
| Control Circuit Voltage 21 | 120 V |
| Pep Code | ENVPEP1503003EN |
| Pep Verification Date | 2026-03-23 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 63 |
| Width Nominal | 45 mm |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Support | plate, rail |
| Certificate Agency | CB Scheme, cULus, EAC, CE, UKCA |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.35870824940541357, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.024659702463330477, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 57 kg CO2 eq., 56.65241524409139 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contactor Application | control circuit |
| Heat Dissipation | 1.5-1.5 W |
| Mechanical Durability | 10 Mcycles |
| Pole Contact Composition | 2 NO |
| Product Name | TeSys CASK |
| Protective Treatment | TC IEC 60068 |
| Range Of Product | TeSys SK control relay |
| Software Version | v6.2.4 |
| Tightening Torque | 0.8 N.m screw clamp terminals pozidriv No 1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Control Circuit Voltage 21 Control Circuit Voltage | 120 V |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 140.16 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 58 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 55 °C) |
| Hold-in Power Consumption In Va | 4.9-4.9 VA (at 20 °C) |
| Package Weight(Lbs) | 181.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-70 °C, -50-70 °C |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 58.22569330707495 |
| Environmental Disclosure | ENVPEP1503003EN |
| Ip Degree Of Protection | IP2X |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-03-23 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1503003 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1503003EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | control relay |
|---|
| Range Of Product | TeSys SK control relay |
|---|
ETIM
| ETIM 8 | EC000196 |
|---|
| ETIM 9 | EC000196 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Accessories
