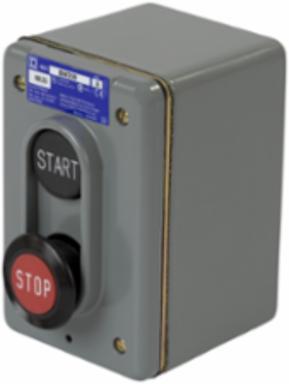

Square D 9001BW250 Control Station with Ø30 Momentary Push Button, NEMA 1 & 4, Waterproof
- MPN: 9001BW250
- UPC: 785901858256
- PPN: SCH-9001BW250
CAD
$341.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Control Station features an Ø30 momentary push button, designed for efficient automation and control in various industrial applications. Engineered to meet NEMA 1 and 4 standards, this control station ensures reliable operation in both indoor and waterproof environments, making it ideal for diverse settings. With its robust construction, this device provides a durable solution for controlling machinery and equipment, enhancing both functionality and safety in your operations.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 0.6 A 600 V AC-1/DC-1, 0.75 A 480 V AC, 1.5 A 240 V AC, 3.75 A 120 V AC
- NEMA Degree of Protection
- NEMA 1, NEMA 4
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Control Station Composition
- 1 flush push-button black white START, 1 mushroom head push-button red white STOP
- Operator Type
- Momentary push button
- Material
- Cast aluminium
- Mounting Type
- Surface
- Environmental Characteristics
- Waterproof, Dustproof
- Standards Compliance
- CSA C22.2 No 14, JIS C 4520, EN/IEC 60947-1, 60947-5-1, 60947-5-4, 60947-5-5, UL 508
- RoHS Compliance
- Yes
Mechanical Durability5,000,000 cycles
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Device TypeControl station
Contact Composition1 NO + 1 NC
Operator Size30 mm
Cable Entry1 entry for 1/2" - 14 NPT
Installation TypeIndoor/outdoor
Product CertificationsCSA, UL Listed
Country of OriginMexico
REACH ComplianceYes
