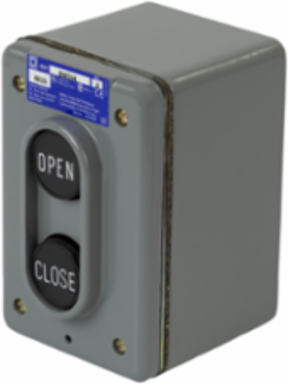

Square D 9001BW244 Control Station 600VAC 5A T-B Ø30 Momentary Pushbuttons, NEMA 1 & 4
- MPN: 9001BW244
- UPC: 785901857396
- PPN: SCH-9001BW244
CAD
$325.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This control station from Schneider Electric introduces a reliable solution for automation and control applications, featuring a robust design that operates at 600VAC with a current rating of 5A. Equipped with T-B Ø30 momentary pushbuttons, it ensures seamless operation across various environments while conforming to NEMA 1 and NEMA 4 standards for protection. Ideal for both indoor and outdoor use, this component enhances operational efficiency and safety in demanding applications, making it an essential addition to any control setup.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 0.6 A 600 V AC-1/DC-1, 0.75 A 480 V AC, 1.5 A 240 V AC, 3.75 A 120 V AC
- Mechanical Durability
- 5000000 cycles
- Ambient Temperature Storage
- -40 to 70 °C (-40 to 158 °F)
- Type Of Operator
- Momentary
- Pushbutton Size
- 30 mm
- Cable Entry
- 1 entry for 1/2" - 14 NPT
- Installation Type
- Indoor/outdoor
- NEMA Degree of Protection
- NEMA 1, NEMA 4
- Control Station Composition
- 1 flush push-button black white OPEN, 1 flush push-button black white CLOSE
- Product Certifications
- CSA, UL Listed
- Country of Origin
- Mexico
- Range of Product
- Harmony 9001BW
Contacts Composition1 NO + 1 NO
Ambient Temperature Operating-25 to 70 °C (-13 to 158 °F)
Control Station ApplicationTwo functions
Control Station FunctionsOpen, Close
Dimensions (W x H x D)70 mm x 108 mm x 91 mm
Device MountingSurface
MaterialCast aluminium
Environmental CharacteristicsWaterproof, Dustproof
StandardsEN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-5, UL 508
ComplianceREACH SVHC free, EU RoHS, China RoHS, Toxic heavy metal free, Mercury free
Color of BaseGrey
Device Short Name9001BW
