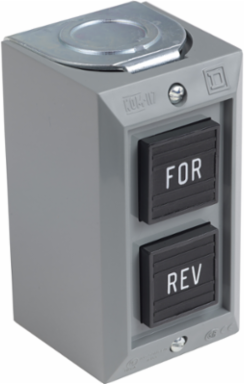

Schneider Electric 9001BG206 Control Station 600VAC 5A Forward Reverse, NEMA 1, Surface Mount

MPN: 9001BG206
UPC: 785901794172
PPN: SCH-9001BG206

$128.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric 9001BG206 Control Station is an essential component for automating machinery and controlling motor functions with precision. Designed to operate efficiently at up to 600VAC and 5A, this unit supports forward and reverse operations, making it particularly versatile in various applications. With a NEMA 1 rating and a surface mount design, it offers reliable protection in indoor environments while facilitating straightforward installation. This control station stands out as an indispensable tool for enhancing industrial automation and ensuring smooth operation of equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico

Physical Attributes

Color Of Cover	grey

Housing Color	grey

Important Information Attributes

Certificate Agency	UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03, CE
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Contacts Type And Composition	2 NO
Dc Control Voltage	125-600 V
Environmental Characteristic	standard environment
Operator Profile	2 projecting push-buttons
Product Or Component Type	complete control station
Returnability	No
Ac Control Voltage 50 Hz	125-600 V
Number Of Command Positions	2
Number Of Push Buttons	2
Housing Color	grey
[Ie] Rated Operational Current	5 A 600 V
Emergency Power Off (Epo)	no
Package Weight(Lbs)	267.62 g
Warranty (In Months)	18

Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Control Station Composition	2 push-buttons FORWARD-REVERSE
Device Short Name	9001BG
Housing Material	metal
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001B
Sustainable Packaging	Yes
Ac Control Voltage 60 Hz	125-600 V
Number Of Contacts As Normally Open Contact	2
Color Of Cover	grey
Pep Code	ENVPEP2503027EN
Connections - Terminals	screw clamp terminal
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Nema Degree Of Protection	NEMA 13, NEMA 1
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
