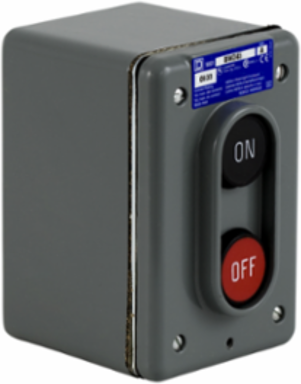

Schneider Electric 9001BW245 Harmony Control Station 600VAC 5A, 1NO-1NC, Surface Mount

MPN: 9001BW245
UPC: 785901857693
PPN: SCH-9001BW245

$350.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony Control Station from Schneider Electric is engineered to provide reliable operation in various automation and control applications. Rated for up to 600VAC and 5A, it features a configuration of one normally open (NO) and one normally closed (NC) contact, ensuring versatility for diverse circuit requirements. Designed for surface mounting, this control station is a practical addition to any control panel, facilitating easy access and effective management of your automation processes. Its robust construction and thoughtful design make it a dependable choice for both industrial and commercial environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Physical Attributes

Cad Overall Depth	91 mm
Cad Overall Width	70 mm
Color Of Cover	grey

Cad Overall Height	108 mm
Color Of Base Of Enclosure	grey
Housing Color	grey

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	1, no
Certificate Agency	UL Listed, CSA
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001BW
Control Station Application	two functions
Dc Control Voltage	125-600 V
Housing Material	metal
Mechanical Durability	5000000 cycles
Operators Description	black ''ON'' 1 NO - red ''OFF'' 1 NC
Product Or Component Type	complete control station
Returnability	Yes
Type Of Operator	momentary
Ac Control Voltage 50 Hz	125-600 V
Number Of Command Positions	2
Color Of Base Of Enclosure	grey
Housing Color	grey
Emergency Power Off (Epo)	no
Package Weight(Lbs)	893.123 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Environmental Characteristic	waterproof, dustproof
[Ie] Rated Operational Current	0.6 A 600 V, AC-1/DC-1, 0.75 A 480 V, AC1.5 A 240 V, AC3.75 A 120 V, AC
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Cable Entry	1 entry for 1/2" - 14 NPT

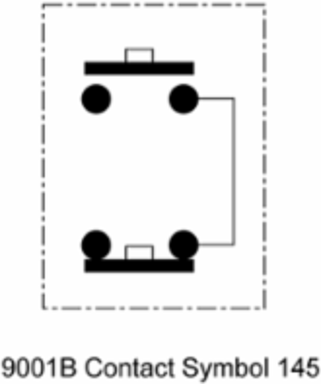

Contacts Type And Composition	1 NO + 1 NC
Control Station Composition	1 flush push-button, black, white ON1 flush push-button, red, white OFF
Device Short Name	9001BW
Material	cast aluminium
Operator Profile	2 flush push-buttons
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001BW
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ac Control Voltage 60 Hz	125-600 V
Number Of Push Buttons	2
Color Of Cover	grey
Pep Code	ENVPEP2503027EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 1, NEMA 4
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
