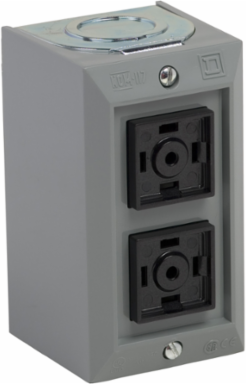

Square D 9001BG214 CONTROL STATION 600VAC 5A T-B

MPN: 9001BG214
UPC: 785901390251
PPN: SCH-9001BG214

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$93.60/ EA

Qty:

Loading add to cart quantity...

Description

This product is part of the Harmony 9001B range, an offer of complete control stations." "This control station has 2 pushbutton with 2 NO and 2 NC contact." "It is a type B control station with a rated voltage of 600V AC and rated operating current of 5A." "It is furnished with screw clamp terminals for electrical connection." "It is an universal standard duty, NEMA 1 rated product." "This control station comes with a plastic cover." "It is used in simple hoisting applications, overhead cranes and building cranes. It is also ideal for lifts and jogging applications (conveyors)." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."

Specifications

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1304002

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI1304002EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Environment

Product Certifications: CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03

Nema Degree Of Protection: NEMA 1

Environmental Characteristicstandard environment

Complementary

Connections - Terminals: screw clamp terminal

Control Station Composition: 2 push-buttons

Type Of Installation: indoor

Contacts Type And Composition2 NO + 2 NC

[Ie] Rated Operational Current5 A 600 V

Device Mountingsurface

Specifications

Range Of Product: Harmony 9001B

Device Short Name: 9001BG

Product Or Component Typecomplete control station
