Schneider Electric 9001KYK14 Harmony Control Station, 30mm, 10A, NEMA 3/4/13, Die Cast Zinc Alloy
- MPN: 9001KYK14
- UPC: 785901513384
- PPN: SCH-9001KYK14
CAD
$325.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

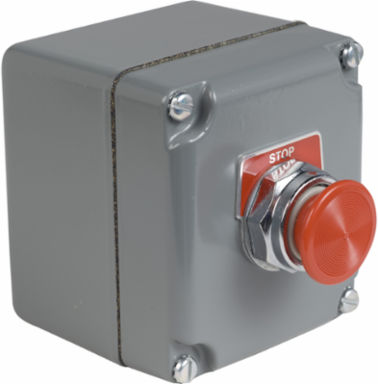

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY1) with one operator. Control station has a 1.375 inch red mushroom push button (9001KR4R) with a 1 normally open and 1 normally closed contact block (9001KA1). The operator has a legend plate that is marked STOP. The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 4.00 inches tall, 3.62 inches wide and 4.87 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "This product can be surface mounted, suitable for indoor/outdoor installation." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Color Of Cover | grey |
|---|
| Housing Color | grey |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Short Name | 9001KY, KY |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1868025109, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2950057226, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Contact Block Name | KA1 |
| Dc Control Voltage | 125-600 V |
| Housing Material | metal |
| Product Or Component Type | complete control station |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Ac Control Voltage 50 Hz | 120-120 V |
| Number Of Command Positions | 1 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Cover | grey |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| [Ie] Rated Operational Current Ac | 10 A |
| Enclosure/Cubicle Description | surface mounting |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509065 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Provided Equipment | contact block, legend plate |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.2022916788 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 9.3324256934 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Composition | 1 push-button 1 NO + 1 NC STOP |
| Enclosure Material | die cast zinc alloy Gray |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony 9001K |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 11 kg CO2 eq. |
| Ac Control Voltage 60 Hz | 120-120 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Push Buttons | 1 |
| Housing Color | grey |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Recyclability Potential In % | 15 |
| Connections - Terminals | screw-clamp terminals |
| Emergency Power Off (Epo) | no |
| Package Weight(Lbs) | 1.388 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 11.0165256058 |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 4/13 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Provided Equipment | contact block, legend plate |
|---|---|
| Range Of Product | Harmony 9001K |
| Product Or Component Type | complete control station |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
