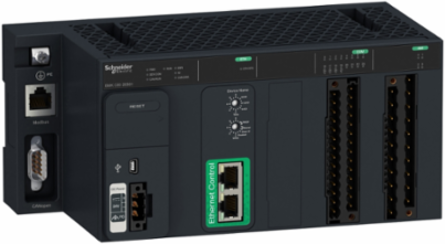

Schneider Electric BMKC8020301 Modicon MC80 Controller, 8 DI, 12 DO, 4 AI, 4 AI Inputs, 24 V DC
- MPN: BMKC8020301
- PPN: SCH-BMKC8020301
- UNSPSC: 32151705
CAD
$2349.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon MC80 Controller from Schneider Electric is engineered to enhance automation control with its comprehensive input and output capabilities. This controller features 8 digital inputs and 12 digital outputs, providing versatile control options for various industrial applications. Additionally, it includes 4 analog inputs, enabling precise data acquisition and monitoring. Designed for reliability and efficiency, this 24 V DC powered unit is ideal for managing complex processes within modern control systems, ensuring seamless operation and integration in any industrial setting.
Features
- Easy to connect
- 8 inputs and 12 outputs
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
Communications & Management Attributes
| Communication Port Protocol | 1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 2471 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16, 2 Ethernet RJ45 10/100 Mbit/s |
|---|
| Communication Service | read/write variables Modbus, diagnostics Modbussend/receive character string character modeProcess Data Object (PDO) CANopen, Service Data Object (SDO) CANopenFDR client Ethernet, SNMP Ethernet, RSTP support Ethernet |
|---|
Physical Attributes
| Bus Length | 0-15 m serial link non isolated0-10 m serial link non isolated0-1000 m serial link isolated with external isolation tap0-20 m 1 Mbit/s CANopen, 0-2500 m 20 kbit/s CANopen, 0-100 m Ethernet |
|---|
Complementary Attributes
| Integrated Connection Type | USB port mini B USB |
|---|
| Us Rated Supply Voltage | 24 V - 15...20 % DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current Consumption | <= 700 mA, <= 700 mA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Execution Time Per Instruction | 0.06 µs Boolean0.08 µs mixed |
| Function Available | memory retention without battery |
| Marking | CE |
| Nominal Read Cycle Time | 6.5 ms for 4 channels |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | thermo solar - parabolic through |
| Realtime Clock | with |
| Sustainable Packaging | No |
| Certificate Agency | RCM |
| Customs Code | 8537109170 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Protection Type | overload protection output, short-circuit protection output |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Fast Read Cycle Time | 1.3 ms + 1.3 ms x number of channels used |
| Isolation Voltage | 1500 V DC |
| Memory Description | internal RAM 3840 kBinternal RAM 128 kB datainternal RAM 3590 kB program constants and symbols |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product Or Component Type | processor module |
| Range Of Product | Modicon MC80 |
| Returnability | Yes |
| Vibration Resistance | 3 gn |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | BMXFTB20... terminal block analog input moduleBMXFTB28... terminal block discrete I/O module |
| Relative Humidity | 0-95 % |
General Attributes
| Product Or Component Type | processor module |
|---|
| Range Of Product | Modicon MC80 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|---|
| ETIM 10 | EC000236 |
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Discrete Output Current | 2 A per output10 A per module |
|---|---|
| Discrete Output Voltage | 19...30 V DC |
| Discrete Output Number | 12 positive |
|---|
Input Attributes
| Analogue Input Number | 4 |
|---|---|
| Analogue Input Type | current - 20...20 mAvoltage - 10...10 V |
| Discrete Input Number | 8 positive logic (sink) |
| Discrete Input Voltage | 19...30 V DC |
| Analogue Input Resolution | 16 bits |
|---|---|
| Discrete Input Current | 2.4 mA |
| Discrete Input Type | type 3 |
