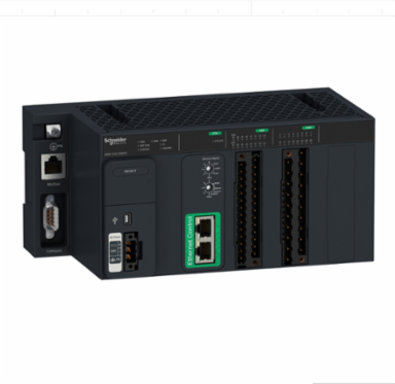

Schneider Electric BMKC8020310 Modicon MC80 Controller, 8 DI, 8 DO, 2 HSC, 0.5 A Output Current
- MPN: BMKC8020310
- PPN: SCH-BMKC8020310
CAD
$2121.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon MC80 Controller from Schneider Electric is engineered to enhance automation capabilities in various industrial applications. This versatile controller features eight digital inputs and eight digital outputs, along with two high-speed counters, making it an ideal choice for managing complex control tasks. With an output current capacity of 0.5 A, it delivers reliable performance while ensuring efficient system integration. Designed for ease of use, the MC80 contributes to streamlined operations, helping businesses optimize productivity and control processes effectively.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Communications & Management Attributes
- Communication Port Protocol
- 1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 2471 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16, 2 Ethernet RJ45 10/100 Mbit/s
Communication Serviceread/write variables Modbus, diagnostics Modbussend/receive character string character modeProcess Data Object (PDO) CANopen, Service Data Object (SDO) CANopenFDR client Ethernet, SNMP Ethernet, RSTP support Ethernet
Physical Attributes
- Bus Length
- 0-15 m serial link non isolated0-10 m serial link non isolated0-1000 m serial link isolated with external isolation tap0-20 m 1 Mbit/s CANopen, 0-2500 m 20 kbit/s CANopen, 0-100 m Ethernet
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB
Maximum Counting Frequency60000 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Counter Functions
- count events, ratio count, frequency meter, one shot counting, measure time periods, loop (modulo) counting, freelarge counting
- Protection Type
- overload protection output, short-circuit protection output
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Function Available
- memory retention without battery
- Marking
- CE
- Number Of Counter
- 2
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- thermo solar - tower power
- Realtime Clock
- with
- Sensor Power Supply
- 19-30 V DC
- Vibration Resistance
- 3 gn
- [Us] Rated Supply Voltage
- 24 V - 15...20 % DC
- Package Weight(Lbs)
- 1.195 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current Consumption<= 700 mA, <= 700 mA
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Execution Time Per Instruction0.06 µs Boolean0.08 µs mixed
Isolation Voltage1500 V DC
Memory Descriptioninternal RAM 3840 kBinternal RAM 128 kB datainternal RAM 3590 kB program constants and symbols
Port Ethernet10BASE-T/100BASE-TX
Product Or Component Typeprocessor module
Range Of ProductModicon MC80
ReturnabilityNo
Sustainable PackagingNo
Certificate AgencyRCM
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Product CompatibilityBMXFTB28... terminal block high-speed counter moduleBMXFTB20... terminal block discrete I/O module
Relative Humidity0-95 %
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon MC80
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 500 mA per output
- Discrete Output Voltage
- 19...30 V DC
- Number Of Outputs
- 2 positive
Discrete Output Number8 positive
Nominal Output Current0.5 A per output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Compatibility
- 24-24 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2/3-wire sensor PNP
- Discrete Input Current
- 5 mA
- Discrete Input Type
- type 3
- Logic Input
- positive (sink)
Number Of Inputs3-3 auxiliary, 3-3 high speed
Discrete Input Number8 positive logic (sink)
Discrete Input Voltage19...30 V DC
