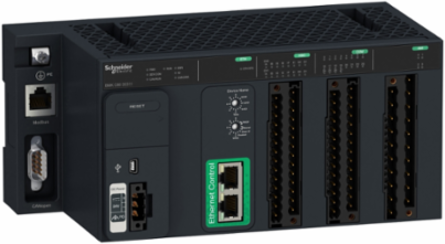

Modicon MC80 Controller, 8 DI, 12 DO, 4 AI, 2 HSC, USB Port
Schneider Electric

Schneider Electric BMKC8030311 Modicon MC80 Controller, 8 DI, 12 DO, 4 AI, 2 HSC, USB Port

  • MPN: BMKC8030311
  • PPN: SCH-BMKC8030311

CAD

$2616.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Modicon MC80 Controller from Schneider Electric is engineered to enhance automation processes with its versatile functionality. This model features eight digital inputs, twelve digital outputs, four analog inputs, and two high-speed counters, providing a comprehensive solution for controlling various applications efficiently. Equipped with a USB port for easy connectivity, it supports straightforward integration into existing systems, ensuring operational flexibility and seamless data exchange. The MC80 is an essential component for industries looking to optimize their control systems with reliable, high-performance technology.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France

Communications & Management Attributes

Communication Port Protocol
1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 2471 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16, 2 Ethernet RJ45 10/100 Mbit/s
Communication Serviceread/write variables Modbus, diagnostics Modbussend/receive character string character modeProcess Data Object (PDO) CANopen, Service Data Object (SDO) CANopenFDR client Ethernet, SNMP Ethernet, RSTP support Ethernet

Physical Attributes

Bus Length
0-15 m serial link non isolated0-10 m serial link non isolated0-1000 m serial link isolated with external isolation tap0-20 m 1 Mbit/s CANopen, 0-2500 m 20 kbit/s CANopen, 0-100 m Ethernet

Complementary Attributes

Integrated Connection Type
USB port mini B USB
Maximum Counting Frequency60000 Hz

Important Information Attributes

Persona Type Ids
EU, OM8, SI
Counter Functions
count events, frequency meter, ratio count, one shot counting, measure time periods, freelarge counting, loop (modulo) counting
Protection Type
overload protection output, short-circuit protection output
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
PLC System - PLC CPU
Traceability
Yes
Average Life Duration
20 year(s)
Weee Product Category
5
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Fast Read Cycle Time
1.3 ms + 1.3 ms x number of channels used
Isolation Voltage
1500 V DC
Memory Description
internal RAM 3840 kBinternal RAM 128 kB datainternal RAM 3590 kB program constants and symbols
Number Of Counter
2
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Specific Application
thermo solar - tower power
Realtime Clock
with
Sensor Power Supply
19-30 V DC
Vibration Resistance
3 gn
[Us] Rated Supply Voltage
24 V - 15...20 % DC
Package Weight(Lbs)
1.304 kg
Warranty (In Months)
18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current Consumption<= 700 mA, <= 700 mA
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Execution Time Per Instruction0.06 µs Boolean0.08 µs mixed
Function Availablememory retention without battery
MarkingCE
Nominal Read Cycle Time6.5 ms for 4 channels
Port Ethernet10BASE-T/100BASE-TX
Product Or Component Typeprocessor module
Range Of ProductModicon MC80
ReturnabilityNo
Sustainable PackagingNo
Certificate AgencyRCM
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Product Compatibility
BMXFTB28... terminal block high-speed counter moduleBMXFTB20... terminal block analog input module, BMXFTB28... terminal block discrete I/O module
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity0-95 %

General Attributes

Product Or Component Type
processor module
Range Of ProductModicon MC80

ETIM

ETIM 8
EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Current
2 A per output10 A per module
Discrete Output Voltage
19...30 V DC
Number Of Outputs
2 positive
Discrete Output Number12 positive
Nominal Output Current0.5 A per output

Input Attributes

Input Compatibility
24-24 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole, 24-24 V 2/3-wire sensor PNP
Analogue Input Number
4
Analogue Input Type
current - 20...20 mAvoltage - 10...10 V
Discrete Input Number
8 positive logic (sink)
Discrete Input Voltage
19...30 V DC
Number Of Inputs3-3 auxiliary, 3-3 high speed
Analogue Input Resolution16 bits
Discrete Input Current2.4 mA
Discrete Input Typetype 3
Logic Inputpositive (sink)
