Copper Compression Lug Terminal, 4/0 AWG, 1/2 Inch Stud, 4.94 Inch Length
Burndy

Burndy YGHA282N Copper Compression Lug Terminal, 4/0 AWG, 1/2 Inch Stud, 4.94 Inch Length

  • MPN: YGHA282N
  • UPC: 781810220375
  • PPN: BUR-279040

CAD

$146.06

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

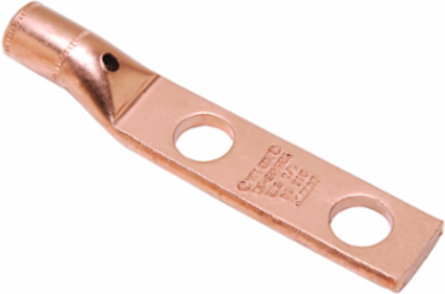

Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe, 4/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction
1-9/50 in
Dimension - D inch
3.00 in
Dimension - Hole Size mm
14 mm
Dimension - Length Overall inch
4.94 in
Dimension - Outside Diameter inch
0.89 in
Dimension - Stud Size fraction
1/2
Dimension - Z inch
0.62 in
Dimension - B Length inch1.18 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm125 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.22 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Listed Direct Burial
Yes
Certification - cULus
No
UL Listed
Yes
Certification - ETLNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusCM

Conductor Related

Conductor - Copper Str Size
4/0 AWG
Conductor - Copper Str Size Range4/0 AWG

General

Application
For Direct Burial In Earth Or Concrete, Grounding Applications
Die Index
17
Physical Attribute - Number of Crimps Required
2
Plating Type
Unplated
Trade Name
HYLUG™
UPC
781810220375
Connector TypeTerminal
MaterialCopper
PlatedN
Sub BrandHYLUG
TypeTerminals
UPC 12 Digit7818102203755

Logistics

Minimum Pack Quantity
1
