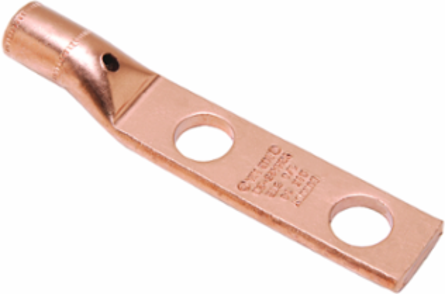

Burndy YGHA292N Copper Compression Lug Terminal, 250 kcmil, 1/2 Inch Stud, 1-3/4 Inch Hole Spacing
- MPN: YGHA292N
- UPC: 781810220382
- PPN: BUR-279052
CAD
$208.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 250 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.
Documentation & Downloads
Specifications
Additional
| Conductor Size | 250 kcmil |
|---|---|
| Number of Crimps Required | 2 |
| Dimension - Hole Size | 0.56 in (14 mm) |
| Tongue Angle | Straight |
| Dimension - Outside Diameter | 0.95 in |
| Dimension - Length Overall | 4.94 in (125 mm) |
| Dimension - Stud Size | 1/2 in |
| Application | Direct Burial in Earth or Concrete, Grounding |
| Certifications | UL467, UL486A-486B, IEEE 837, CSA Approved, UL Listed Direct Burial, RoHS CM |
| Material | Copper |
|---|---|
| Dimension - D | 3.00 in |
| Dimension - Pad Width | 1.28 in |
| Dimension - Z | 0.62 in |
| Dimension - B Length | 1.18 in |
| Dimension - N | 0.63 in |
| Connector Type | Terminal |
| Plating Type | Unplated |
