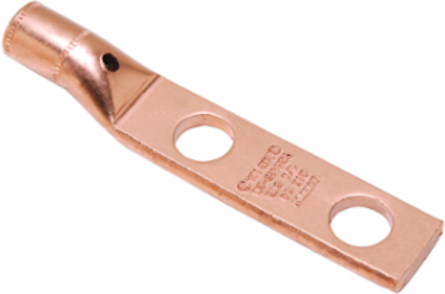

Burndy YGHA2C2N Copper Compression Lug Terminal 2 AWG 1/2 Inch Stud with 1-3/4 Inch Hole Spacing
- MPN: YGHA2C2N
- UPC: 781810220351
- PPN: BUR-279038
CAD
$105.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 2 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.
Documentation & Downloads
Specifications
Additional
| Conductor Size | 2 AWG |
|---|---|
| Hole Size | 0.56 in. (14 mm) |
| Dimension D | 3.00 in. |
| Dimension N | 0.63 in. |
| Pad Width | 0.97 in. |
| Tongue Angle | Straight |
| Material | Copper |
| Plating Type | Unplated |
| Die Index | 11 |
| CSA Approved | Yes |
| Application | Direct Burial in Earth or Concrete, Grounding |
| Stud Size | 1/2 in. |
|---|---|
| Length Overall | 4.21 in. (107 mm) |
| Dimension B | 0.75 in. (3/4 in.) |
| Dimension Z | 0.62 in. |
| Outside Diameter | 0.50 in. |
| Number of Crimps Required | 1 |
| Plated | No |
| Connector Type | Terminal |
| UL Listed | Yes |
| Industry Standards | UL467, UL 486A-486B, IEEE 837 |
