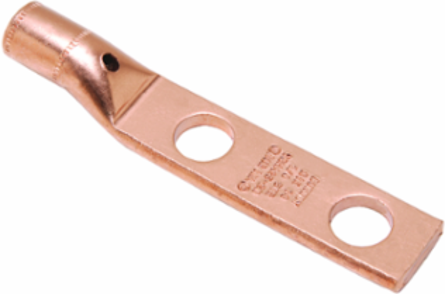

Burndy YGHA342N Copper Compression Lug Terminal, 500 kcmil, 1/2 Inch Stud, 1-3/4 Inch Hole Spacing
- MPN: YGHA342N
- UPC: 781810220399
- PPN: BUR-279041
CAD
$362.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.
Documentation & Downloads
Specifications
Additional
| Material | Copper |
|---|---|
| Number of Crimps Required | 3 |
| Plating Type | Unplated |
| CSA Approved | Yes |
| Dimension - Pad Width | 1.72 in |
| Dimension - Hole Size | 0.56 in (14 mm) |
| Die Index | 22 |
| Certification - UL Listed Direct Burial | Yes |
| Certification - ETL | No |
| Certification - cULus | No |
| Conductor Size | 500 kcmil |
|---|---|
| Tongue Angle | Straight |
| UL Listed | Yes |
| Dimension - Length Overall | 5.42 in (138 mm) |
| Dimension - Outside Diameter | 1.24 in |
| Dimension - Stud Size | 1/2 in |
| Connector Type | Terminal |
| Standards - RoHS Compliance Status | CM |
| Certification - UL Recognized | No |
