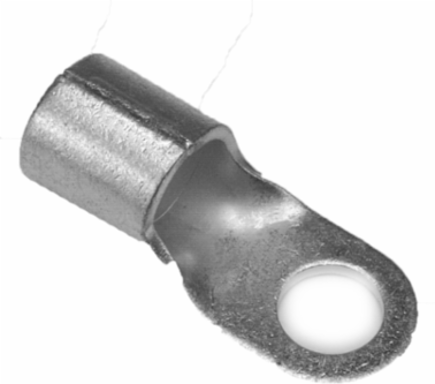

Burndy YAV10TC12 Non-Insulated Copper Compression Terminal, 1 Hole, 0.53 Inch Hole Dia.
- MPN: YAV10TC12
- UPC: 781810049914
- PPN: BUR-518593
CAD
$34.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Terminal, 1 Hole W/InspWindow, #14 - #10 Str Cu, 0.525" Hole Dia.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 1.08 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 1.86 in
- Dimension - Outside Diameter inch
- 0.21 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.55 in
Dimension - B Length inch0.40 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.53 in
Dimension - L Length Overall mm47 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch0.34 in
Dimension - Thread Size1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 10 AWG
- Conductor - Material
- Copper
Conductor - Copper Str Size Range10 AWG
General
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Trade Name
- HYLUG™
- UPC
- 781810049914
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100499144
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 100
