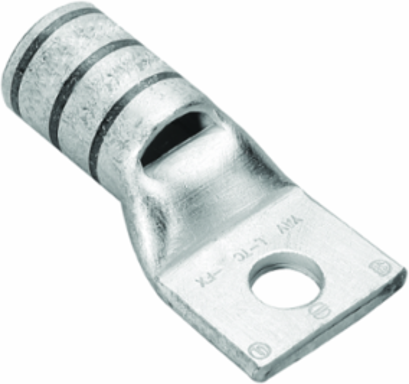

Burndy YAV6CLTC12FX HYLUGTM Standard Barrel Terminal, 6 AWG Copper, 1 Hole, 0.53 Inch BCD, 600V-35kV
- MPN: YAV6CLTC12FX
- UPC: 781810022887
- PPN: BUR-518555
CAD
$27.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug, 1 Hole with Inspection Window, #6 WELD, 6(61/#24) DLO, #6 AWG Code, 30 Navy, 600V-35kV, 1/2" stud, Standard, Compression, 0.53 in BCD, Blue.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1/2 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.53 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 1.86 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1/2 in |
| Dimension - Z inch | 0.55 in |
| Dimension - B Length inch | 0.50 in |
|---|---|
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 47 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 0.75 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Solid Size | 6 AWG |
| Conductor - Copper Str Navy Size | 30 Navy |
| Conductor - Copper Str Size | 16 mm² |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Solid Size Range | 6 AWG |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Conductor - Copper Str Size Range | 16 mm² |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100228877 |
| Color Code | Blue |
|---|---|
| Die Index | 7;374 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810022887 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
