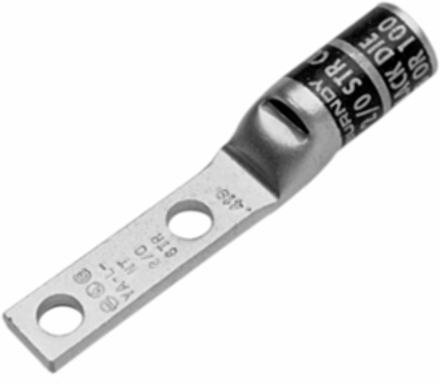

Burndy YA25L2NT14 Copper Terminal HYLUG, 1/0 AWG, 1/4 Inch Stud, 2.56 Inch Long
- MPN: YA25L2NT14
- UPC: 781810279977
- PPN: BUR-26002324
CAD
$27.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, 1/0 AWG, 1/4 in, 2.56 in L.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 65 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.48 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - D inch1.30 in
Dimension - Length Overall inch2.56 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.36 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 100 (61) Navy
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- TERMINALS, HYLUG
- Type
- YA-L-2NT
Color CodePink
Die Index12
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810279977
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
