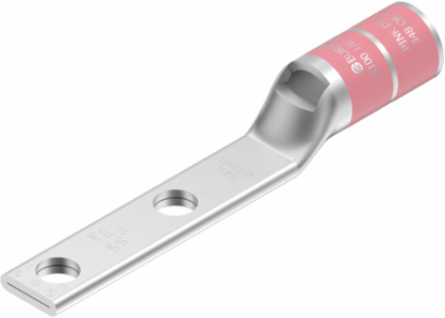

Burndy YA25L2NT14E1 Copper Terminal Connector, 1/0 AWG, 35 kV, 1/4 Inch Stud, 2 Holes
- MPN: YA25L2NT14E1
- UPC: 781810020272
- PPN: BUR-50246A
CAD
$41.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, 2 holes/W/ insp window, 1/0 AWG, 600V-35Kv, 1/4" stud, Pink,12 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 83 mm
- Dimension - N inch
- 0.25 in
- Dimension - Pad Width inch
- 0.48 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - D inch1.94 in
Dimension - Length Overall inch3.28 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.69 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 100 (61) Navy
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Str Navy Size100 (61) Navy
Conductor - Copper Str Size1/0
General
- Color Code
- Pink
- Die Index
- 12
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
UPC781810020272
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
