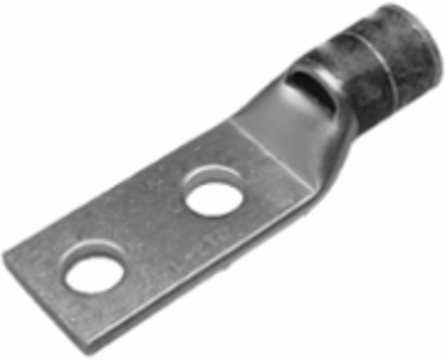

Burndy YAL252N HYLUGTM Terminal Connector, 1/0 AWG, 1/2 Inch Stud, 3.84 Inch Length Overall
- MPN: YAL252N
- UPC: 781810416914
- PPN: BUR-10054908
CAD
$30.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUGTM , 2 Hole w/ Inspection Window, 1/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing,12 index,Pink, Short Barrel, Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 11/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.00 in
- Dimension - L Length Overall mm
- 98 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 0.75 in
- Dimension - Z inch
- 0.63 in
Dimension - B Length inch0.72 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch3.84 in
Dimension - Outside Diameter inch0.51 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Solid Size Range
- 1/0 AWG
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Solid Size1/0 AWG
Conductor - Copper Str Size1/0
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- 12
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810416914
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
