Burndy YA25LNT516 Copper Terminal Connector, 1/0 AWG, 35000V, 5/16 Inch Stud, Pink
- MPN: YA25LNT516
- UPC: 781810018514
- PPN: BUR-50226Q
CAD
$30.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, Single hole/W/ insp window, 1/0 AWG,600V-35Kv,5/16" stud, Pink, 12 index.
Documentation & Downloads
Specifications

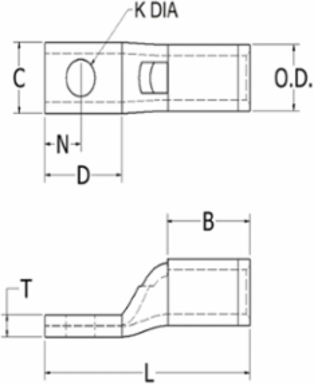

Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - L Length Overall mm
- 58 mm
- Dimension - N inch
- 0.33 in
- Dimension - Pad Width inch
- 0.62 in
- Dimension - Stud Size inch
- 5/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - D inch0.94 in
Dimension - Length Overall inch2.28 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.61 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Solid Size Range
- 1/0 AWG
- Conductor - Copper Str Size Range
- 1/0
Conductor - Copper Solid Size1/0 AWG
Conductor - Copper Str Size1/0
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- YA-L-NT, Code Conductor Standard Barrel Narrow Tongue
Color CodePink
Die Index12
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810018514
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
