Burndy YA4CLNT10 Copper Compression Terminal, 4 AWG, 35 kV, Gray, 1.73 Inch Overall Length
- MPN: YA4CLNT10
- UPC: 781810054840
- PPN: BUR-50259P
CAD
$14.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, Single hole/W/ insp window, #4 AWG,600V-35Kv,#10 stud,Grey,8 index
Documentation & Downloads
Specifications

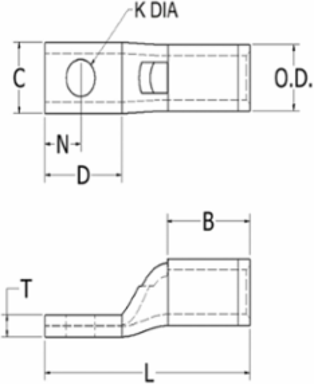

Dimensions
- Dimension - B Length fraction
- 13/16 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Dimension - L Length Overall mm
- 44 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.40 in
- Dimension - Stud Size inch
- #10
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.81 in
Dimension - D inch0.64 in
Dimension - Length Overall inch1.73 in
Dimension - Outside Diameter inch0.34 in
Dimension - Strip Length inch7/8
Dimension - Z inch0.33 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Solid Size Range
- 4 AWG
- Conductor - Copper Str Size Range
- 4 AWG
Conductor - Copper Solid Size4 AWG
Conductor - Copper Str Size4 AWG
General
- Color Code
- Gray
- Die Index
- 8
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
UPC781810054840
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
