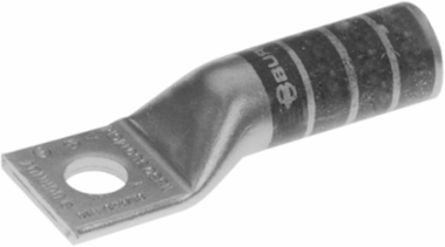

Burndy YA4CTC38 Copper Compression Lug, 1 Hole, #4 AWG, 3/8 Inch Stud, Long Barrel, Electro-Tin Plated
- MPN: YA4CTC38
- UPC: 781810270455
- PPN: BUR-26001274
CAD
$17.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, 1 Hole w/o Inspection Window, #4 AWG, 3/8" Stud, Long Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.12
- Dimension - Hole Size inch
- 0.4
- Dimension - L Length Overall mm
- 57
- Dimension - N inch
- 0.41
- Dimension - Pad Width inch
- 0.58
- Dimension - Stud Size inch
- 3/8 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.4
Dimension - Hole Size mm10
Dimension - Length Overall inch2.25
Dimension - Outside Diameter inch0.34
Dimension - Strip Length inch1-3/16 in
Dimension - Z inch0.42
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 4 AWG
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size40 (19) Navy
Conductor - Copper Str Size4 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Physical Attribute - Tongue Type
- Straight
- Plating Type
- Electro-Tin
- Trade Name
- HYLUG™
- UPC
- 781810270455
Color CodeGray
Die Index8;346
Feature - Barrel TypeLong
Physical Attribute - Number of Holes1
PlatedY
Sub BrandHYLUG
TypeLong Barrel, Electro-Tin Plated
UPC 12 Digit7818102704555
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
