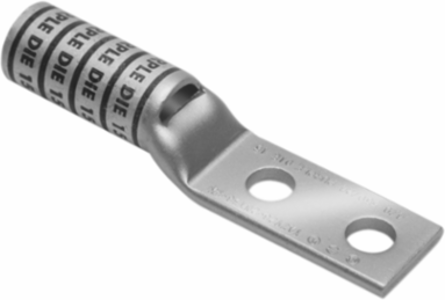

Burndy YAZV282NT38FX Copper Terminal Connector, 4/0 AWG, 3/8 Inch Stud, Long Barrel, 35 kV
- MPN: YAZV282NT38FX
- UPC: 781810165997
- PPN: BUR-25006462
CAD
$61.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Narrow Tongue/Bvl Entry, 2 Hole/W/InspWindow, 4/0 AWG, 4/0 Weld, 4/0(550/#24) DLO, 3/8" Stud, 1.00" Spacing , Lng bbl.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-5/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Diameter Min Size inch
- 1.84 in
- Dimension - Length Overall inch
- 3.96 in
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.94 in
- Dimension - Stud Size inch
- 3/8 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.62 in
Dimension - Bolt Size fraction3/8
Dimension - L Length Overall mm101 mm
Dimension - Length Side B inch3.96 in
Dimension - Outside Diameter inch0.77 in
Dimension - Strip Length inch1-11/16
Dimension - Z inch0.43 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4/0 (550/#24) DLO
- Conductor - Copper Flex H Size
- 4/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Str Size
- 4/0 AWG
- Conductor - CopperWeld Str Size
- 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Conductor - Copper Flex G Size4/0 AWG
Conductor - Copper Flex I Size4/0 AWG
Conductor - Copper Flex M Size4/0 AWG
Conductor - Copper Str Size Range4/0 AWG
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- YAZV-2NTFX, Long Barrel Narrow Tongue
Color CodePurple
Die Index15
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810165997
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
