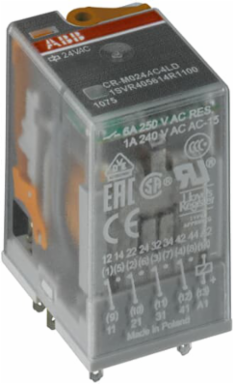

ABB 1SVR405612R5000 Pluggable Interface Relay 48V AC, 3 c/o, 250V/10A, IP40, 0.033 kg
ABB 1SVR405612R5000 Pluggable Interface Relay 48V AC, 3 c/o, 250V/10A, IP40, 0.033 kg
- MPN: 1SVR405612R5000
- PPN: ABB-1SVR405612R5000
- UNSPSC: 39122331
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.23/ EA
Description
The CR-M048AC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 48 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Specifications
Dimensions
- Product Net Width
- 21.2 mm
- Product Net Depth / Length
- 27.5 mm
Product Net Height35.6 mm
Product Net Weight0.033 kg
Technical
- Function
- Pluggable miniature interface relay CR-M
- Rated Control Supply Voltage (Us)
- 48 V AC
- Rated Frequency (f)
- 50 / 60 Hz
- Output Signal
- 250 V / 10 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 10 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 10 A
- Rated Insulation Voltage (Ui)
- 250 V
- Mounting Position
- 1
Sub-FunctionRelay w/o built in LED
Rated Operational Voltage250 V AC
Output3 c/o (SPDT) contacts
Terminal TypeFlat-Pin Connections
Rated Operational Current AC-15 (Ie)(120 V) 3 A(230 V) 1.5 A
Rated Operational Current DC-13 (Ie)(24 V) 2.5 A(250 V) 0.1 A
Degree of ProtectionIP40
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61810-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371601
ETIM 9EC001437 - Switching relay
E-Number (Finland)2712665
Environmental
- Ambient Air Temperature
- Operation -40 ... +55 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 300 V AC
- Flammability According to UL94
- HB
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85364900
