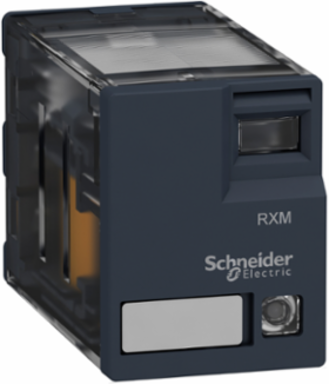

Schneider Electric RXM2AB3F7 miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, with LED, 120V AC

  • MPN: RXM2AB3F7
  • PPN: SCH-RXM2AB3F7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.40

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 120 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina

    Physical Attributes

    Cad Overall Depth80.35 mm
    Cad Overall Height82.8 mm

    Complementary Attributes

    Control Circuit TypeAC
    Maximum Switching Capacity3000 VA/336 W
    Minimum Switching Capacity170 mW 10 mA, 17 V
    Line Rated Current12 A
    Maximum Switching Voltage250 V IEC
    Rated Operational Voltage Limits96...132 V AC

    Important Information Attributes

    Control Typewithout lockable test button, without lockable test button
    Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Certificate AgencyUL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
    [Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Average Coil Consumption In Va1.2-1.2 60 Hz
    Average Resistance4430 Ohm 20 °C +/- 15 %
    Contacts MaterialAgNi
    Electrical Durability100000 cycles resistive
    Mechanical Durability10000000 cycles
    Operating Time20 ms
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    Reset Time20 ms
    Safety Reliability DataB10d = 100000
    Shape Of Pinflat (faston type)
    Sustainable PackagingYes
    Utilisation Coefficient20 %
    Control Circuit Voltage120 V
    [Ithe] Conventional Enclosed Thermal Current12 A
    Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
    Package Weight(Lbs)38 g
    Warranty (In Months)18
    Dielectric Strength1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
    Status Ledwith, with
    [Ie] Rated Operational Current6 A 250 V AC) NC IEC12 A 28 V DC) NO IEC12 A 250 V AC) NO IEC6 A 28 V DC) NC IEC, 12 A 28 V DC) UL, 12 A 277 V AC) UL
    [Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2106019EN
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Average Consumption1.2 VA 60 Hz
    Compatibility CodeRXM
    Contacts Type And Composition2 C/O
    Load Current12 A 250 V AC12 A 28 V DC
    Operating Positionany position
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typeminiature relay
    ReturnabilityYes
    Series NameRXM series
    Shock Resistance10 gnin operation30 gnnot operating
    Test Levelslevel A group mounting
    Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    Pep CodeENVPEP2106019EN
    [Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Circularity ProfileENVEOLI2106019EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Environmental DisclosureENVPEP2106019EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2106019EN

    General Attributes

    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Output Attributes

    Continuous Output Current10 A

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
