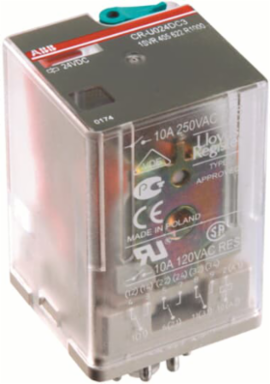

ABB 1SVR405622R5100 Pluggable Interface Relay 3 c/o, 48V AC, 250V/10A, LED, 35mm Width
ABB 1SVR405622R5100 Pluggable Interface Relay 3 c/o, 48V AC, 250V/10A, LED, 35mm Width
- MPN: 1SVR405622R5100
- PPN: ABB-1SVR405622R5100
- UNSPSC: 39122331
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$36.14/ EA
Description
The CR-U048AC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 48 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Specifications
Dimensions
- Product Net Width
- 35 mm
- Product Net Depth / Length
- 35 mm
Product Net Height54.4 mm
Product Net Weight0.083 kg
Technical
- Function
- Pluggable universal interface relay CR-U
- Rated Control Supply Voltage (Us)
- 48 V AC
- Rated Frequency (f)
- 50 / 60 Hz
- Output Signal
- 250 V / 10 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 10 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 10 A
- Rated Insulation Voltage (Ui)
- 250 V
- Mounting Position
- 1
Sub-FunctionRelay with built in LED
Rated Operational Voltage250 V AC
Output3 c/o (SPDT) contacts
Terminal TypePin
Rated Operational Current AC-15 (Ie)(120 V) 3 A(230 V) 1.5 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A(250 V) 0.1 A
Degree of ProtectionIP40
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61810-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371601
ETIM 9EC001437 - Switching relay
E-Number (Finland)2712774
Environmental
- Ambient Air Temperature
- Operation -40 ... +55 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 300 V AC
- Flammability According to UL94
- HB
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85364900
