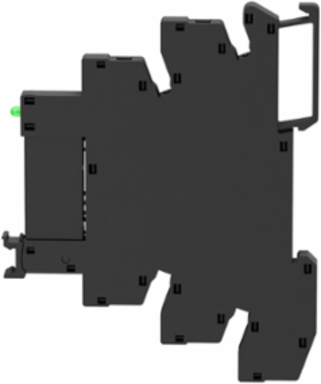

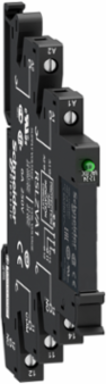

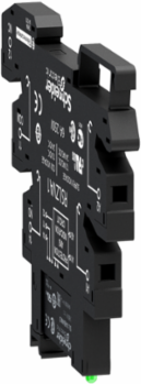

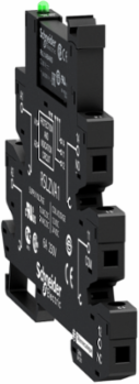

Schneider Electric RSL1PVBU Slim Interface Relay 24V AC/DC 6A 1CO with LED, 6.2mm Width

MPN: RSL1PVBU
PPN: SCH-RSL1PVBU

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$23.23

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RSL slim, pre-assembled plug-in relay and socket features a 24VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Features

The RSL1PVBU is a pre-assembled, space-saving interface relay kit consisting of a 6-Amp subminiature relay and a specialized screw-terminal socket. Measuring only 6mm in width, it is designed to isolate, amplify, or match signals between a low-power PLC (Programmable Logic Controller) and high-power field devices like motors or valves.
The "BU" suffix indicates that this relay is designed for a 24V AC/DC control circuit. This universal voltage compatibility makes it an incredibly versatile "stocking" item for maintenance teams, as it can be used in both standard DC automation circuits and AC-driven control panels without needing separate components.
This unit features a 1 C/O (SPDT) contact arrangement, meaning it has one common terminal that can switch between a Normally Open (NO) and a Normally Closed (NC) position. This allows you to control a device while simultaneously providing a feedback signal to your control system, or to toggle between two different loads.
Because of its ultra-slim 6mm profile, the RSL1PVBU allows you to fit up to 10 relays in the space usually occupied by just two standard industrial "ice-cube" relays. This is critical for modern, high-density control cabinets where panel space is at a premium and cooling airflow must be maintained.
Unlike "non-serviceable" solid-state blocks, the RSL1PVBU allows the relay to be swapped out of the socket without disconnecting any field wiring. It includes a locking lever that secures the relay in high-vibration environments and acts as an ejector for fast, tool-free replacement during maintenance cycles.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Italy, United States

Depth	95 mm

Complementary Attributes

Maximum Switching Capacity	1500 VA, 150 W
Line Rated Current	6 A
Minimum Switching Capacity	120 mW
Minimum Switching Voltage	12 V

Control Circuit Type	AC/DC
Maximum Switching Voltage	277 V
Minimum Switching Current	100 mA

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operating Rate	<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
Tightening Torque	< 0.5 N.m M2.5, < 0.5 N.m M2.5< 0.5 N.m M2.5, < 0.5 N.m M2.5
Certificate Agency	UL, GOST, CSA
Connections - Terminals	screw connectors, screw connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.015185817897280726, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	kg CO2 eq., 0
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	2 kg CO2 eq., 2.425842263779134
Local Publishable Date	2026-05-29
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506033EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2353
China Rohs In Scope	Yes
Phenolic Free Solution	Yes
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	3390 Ohm DC 23 °C +/- 10 %
Contact Operation	standard
Contacts Material	silver alloy (AgSnO2)
Control Type	without lockable test button
Electrical Durability	60000 cycles resistive, 6 A 250 V, AC-1
Load Current	6 A 250 V AC 0.5 mm mounting distance
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Or Component Type	pre-assembled plug-in relay with socket
Range Of Product	Harmony Electromechanical Relays
Returnability	Yes
Sale Per Indivisible Quantity	10
Shape Of Pin	flat (PCB type)
Software Version	v6.3.0.1-4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Input Voltage 9 Input Voltage	24 V
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %	41

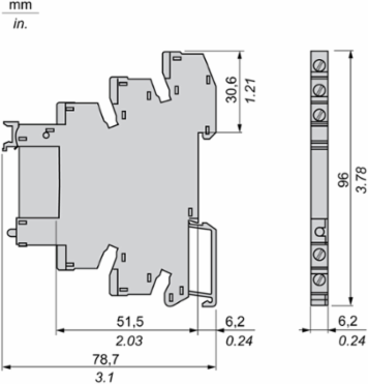

Width Nominal	6.2 mm
[Ithe] Conventional Enclosed Thermal Current	6 A -40-55 °C
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544429090

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Time	5 ms reset, 12 ms
Connections Terminals	screw connectors
[Uc] Control Circuit Voltage	AC/DC, 24 V

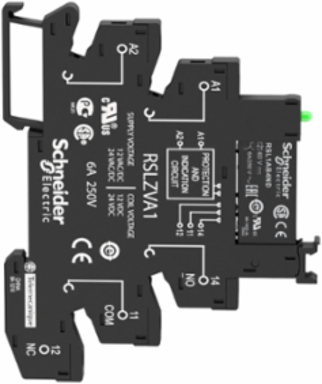

Terminals Description Iso N°1	(A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0627053188436503, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.27483067729713645
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption	0.17 W, DC
Compatibility Code	RSL
Contact Terminal Arrangement	separate
Contacts Type And Composition	1 C/O
Dielectric Strength	1000 V AC between contacts4000 V AC between coil and contact
Fixing Mode	plastic compression spring
Marking	CE
Mounting Support	35 mm symmetrical DIN rail
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT III
Relay Type	slim interface relay
Safety Reliability Data	B10d = 60000
Series Name	RSL series
Shock Resistance	10 gn 11 ms) in operation IEC 60068-2-275 gn 11 ms) not operating IEC 60068-2-27
Status Led	with
Test Levels	level A group mounting
Vibration Resistance	10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-65 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
Pep Code	ENVPEP2506033EN
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	78.6 mm
[Ie] Rated Operational Current	6 A 1 C/O AC-1/DC-1)IEC/UL
[Ui] Rated Insulation Voltage	250 V IEC277 V cUL
Drop-out Voltage Threshold	>= 0.05 Uc>= 0.05 Uc
Package Weight(Lbs)	29.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Carbon Footprint	2.7785640778172014
Circularity Profile	ENVEOLI2506033EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506033EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Toxic Free	Yes
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2506033EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
