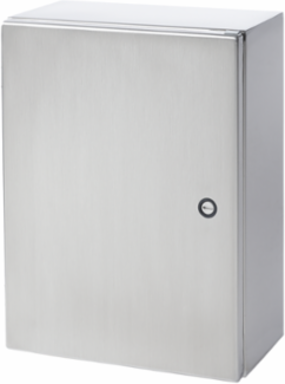

nVent Hoffman CSD16168SS Concept Wallmount Enclosure, 16x16x8 Inch, Stainless Steel, NEMA 4X

MPN: CSD16168SS
UPC: 783510485306
PPN: HOF-CSD16168SS
UNSPSC: 39121324

$1205.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD16168SS item measures 16x16x8 inch with a material of Stainless 304 finish Brushed.

Features

Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	406
Protection Rating	NEMA Type 3R
Finish	Brushed #4
Door Thickness	1.59
Latch Quantity	1
Weight	21.2
Sub Brand	Concept
Size	16.00x16.00x8.00 in

Height (H)	406
Depth (D)	203
Product Family	Concept
Body Thickness	1.59
Mounting (G x H)	368 x 368
IP Rating	IP66
Latch Type	Quarter-Turn
Material	Stainless Steel
NEMA Rating	4X Watertight, corrosion-resistant
