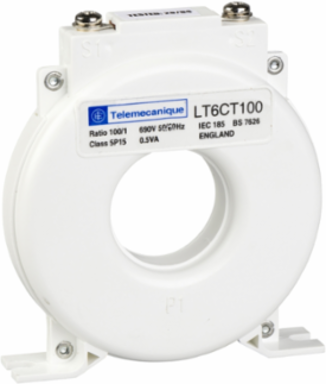

Schneider Electric LT6CT1001 Current transformer, TeSys T, LT6CT, 100/1 ratio, class 5P
Schneider Electric LT6CT1001 Current transformer, TeSys T, LT6CT, 100/1 ratio, class 5P
- MPN: LT6CT1001
- PPN: SCH-LT6CT1001
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$866.49/ EA
Description
The Schneider Electric TeSys LT6 protection relay is a versatile solution designed to safeguard against various electrical anomalies. From thermal overloads to phase imbalance and earth leakage current, this relay offers comprehensive protection, ensuring the safety and reliability of electrical systems. The front panel features a 7-segment display unit for viewing protection faults, along with intuitive controls such as test and reset pushbuttons, DIP switch, and serial interface, enhancing operational convenience. Additionally, it offers fault and alarm indication via a remote display unit, enhancing monitoring and control capabilities. With communication via bus using Uni-Telway and Jbus/Modbus protocols, it facilitates seamless integration and data exchange, including measurements, logs, and configuration parameters. To complement this system, this current transformer, with a 100:1 ratio and class 5P accuracy, ensures precise and reliable current measurement, further enhancing the functionality of the TeSys LT6 protection relay.
Specifications
Complementary Attributes
- Maximum Ambient Air Temperature For Operation
- 50 °C
Ui Rated Insulation Voltage690 V
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC 60185, BS 7626
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- Transformer - current transformer
- Traceability
- No
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1831
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LT6CT
- Device Short Name
- LT6CT
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Sustainable Packaging
- No
- Offer Owner Code
- 190788
- Height Nominal
- 107 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Cable Cross Section30-30 mm²
Current Transformer Ratio100/1
Diameter35 mm
Precision Limit Factor15
Product Or Component Typecurrent transformer
ReturnabilityNo
Warranty In Months18
Pn1
Width Nominal95 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, France, United Kingdom, United States
Depth25 mm
