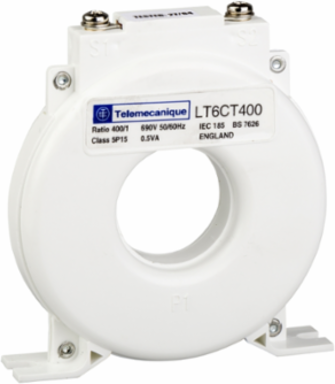

Schneider Electric LT6CT4001 Current transformer, TeSys T, LT6CT, 400/1 ratio, class 5P
Schneider Electric LT6CT4001 Current transformer, TeSys T, LT6CT, 400/1 ratio, class 5P
- MPN: LT6CT4001
- PPN: SCH-LT6CT4001
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$866.49/ EA
Description
The Schneider Electric TeSys LT6 protection relay is a versatile solution designed to safeguard against various electrical anomalies. From thermal overloads to phase imbalance and earth leakage current, this relay offers comprehensive protection, ensuring the safety and reliability of electrical systems. The front panel features a 7-segment display unit for viewing protection faults, along with intuitive controls such as test and reset pushbuttons, DIP switch, and serial interface, enhancing operational convenience. Additionally, it offers fault and alarm indication via a remote display unit, enhancing monitoring and control capabilities. With communication via bus using Uni-Telway and Jbus/Modbus protocols, it facilitates seamless integration and data exchange, including measurements, logs, and configuration parameters. To complement this system, this current transformer, with a 400:1 ratio and class 5P accuracy, ensures precise and reliable current measurement, further enhancing the functionality of the TeSys LT6 protection relay.
Specifications
Complementary Attributes
- Maximum Ambient Air Temperature For Operation
- 50 °C
Ui Rated Insulation Voltage690 V
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- BS 7626, IEC 60185
- Local Publishable Date
- 2026-04-12
- Stocking Flag
- N
- Device Type
- Transformer - current transformer
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1852
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Cable Cross Section
- 30-30 mm²
- Current Transformer Ratio
- 400/1
- Diameter
- 35 mm
- Precision Limit Factor
- 15
- Product Or Component Type
- current transformer
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Offer Owner Code
- 190788
- Height Nominal
- 107 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeLT6CT
Device Short NameLT6CT
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Sustainable PackagingNo
Warranty In Months18
Pn1
Width Nominal95 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, China, France, United Kingdom, United States
Depth25 mm
