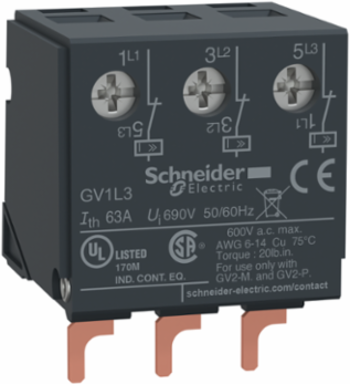

Schneider Electric GV1L3 TeSys Deca Current Limiter, 32A/690V, 1500A Activation, Screw Clamp Terminals
- MPN: GV1L3
- PPN: SCH-GV1L3
CAD
$256.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV short circuit current limiter block for motor circuit breakers GV2L/LE/P/ME/RT. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be mounted on top of a GV2 motor circuit breaker. It conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Range Compatibility
- TeSys GV2 || TeSys Deca
- [Ith] Conventional Free Air Thermal Current
- 63 A IEC 60947-1
- Range
- TeSys
- Breaking Capacity
- <= 100 kA depending on protective device
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-1
- Function Of Module
- increasing the breaking capacity of a circuit breaker
Range Of ProductTeSys GV2 || TeSys Deca
Accessory / Separate Part Categoryprotection accessory
Product Or Component Typecurrent limiting module
Mounting Locationon top of the circuit breaker
[Ie] Rated Operational Current32 A
Activation Threshold1500 A
Product CompatibilityGV2RT || GV2ME || GV2P || GV2L
Complementary
- Net Weight
- 0.13 kg
- Tightening Torque
- 2.2 N.m
Connections - Terminalsscrew clamp terminals 1 x 1.5-25 mm² rigid || screw clamp terminals 2 x 1.5-10 mm² rigid || screw clamp terminals 1 x 1.5-25 mm² flexible without cable end || screw clamp terminals 2 x 1.5-10 mm² flexible without cable end || screw clamp terminals 1 x 1.5-16 mm² flexible with cable end || screw clamp terminals 2 x 1.5-4 mm² flexible with cable end
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121004
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121004
