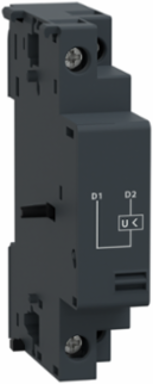

Schneider Electric GVAU116 TeSys Deca Undervoltage Release, 110-115V AC, 18 mm Width
Schneider Electric GVAU116 TeSys Deca Undervoltage Release, 110-115V AC, 18 mm Width
- MPN: GVAU116
- PPN: SCH-GVAU116
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$82.91/ EA
Description
TeSys GV electrical trip, MN undervoltage release, 110-115V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Complementary
- [Uc] Control Circuit Voltage
- 110...115 V AC 60 Hz
- Height
- 89 mm
- Range Compatibility
- TeSys GV2ME || TeSys GV2LE || TeSys GV2L || TeSys GV2P || TeSys GV3L || TeSys GV3P || TeSys Deca
- Net Weight
- 0.105 kg
- Connections - Terminals
- screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1.5 mm²flexible with cable end || screw clamp terminals 2 0.75-1.5 mm²flexible with cable end
- Mechanical Durability
- 10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P
- Hold-In Power Consumption In Va
- 3.5-3.5 VA AC
- Quantity Per Set
- set of 10
- Colour
- dark grey
- Depth
- 66 mm
Control Circuit Voltage Limits0.85...1.1 Un
Tightening Torque< 1.4 N.m screw clamp terminals
Hold-In Power Consumption In W1.1-1.1 W
Inrush Power In Va12-12 VA AC
[Ui] Rated Insulation Voltage690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1
Threshold Tripping Voltage0.7...0.35 Un
On-Load Factor100 %
Operating Time10...15 ms IEC 60947-1
Width18 mm
Inrush Power In W8 W
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant
Specifications
- Product Or Component Type
- undervoltage release
- Device Short Name
- GVAU
RangeTeSys || TeSys Deca
Contractual warranty
- Warranty
- 18 months
