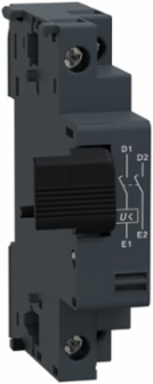

Schneider Electric GVAX116 Undervoltage release (MN),TeSys Deca frame 2,110-115V AC 60Hz,safety device for GV2ME
Schneider Electric GVAX116 Undervoltage release (MN),TeSys Deca frame 2,110-115V AC 60Hz,safety device for GV2ME
- MPN: GVAX116
- PPN: SCH-GVAX116
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$135.42/ EA
Description
TeSys GV electrical trip, MN undervoltage release, 110-115V AC 60Hz, for motor circuit breakers GV2ME used in safety-related systems. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, INRS, VDE 0113), Green Premium compliant (RoHS/REACh).
Specifications
Complementary
- [Uc] Control Circuit Voltage
- 110...115 V AC 60 Hz
- Height
- 89 mm
- Range Compatibility
- TeSys GV2ME || TeSys Deca
- Net Weight
- 0.105 kg
- Connections - Terminals
- screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1.5 mm²flexible with cable end || screw clamp terminals 2 0.75-1.5 mm²flexible with cable end
- Mechanical Durability
- 30000 cycles
- Hold-In Power Consumption In Va
- 3.5-3.5 VA AC
- Quantity Per Set
- set of 10
- Colour
- dark grey
- Depth
- 66 mm
Control Circuit Voltage Limits0.85...1.1 Un
Tightening Torque< 1.4 N.m screw clamp terminals
Hold-In Power Consumption In W1.1-1.1 W
Inrush Power In Va12-12 VA AC
[Ui] Rated Insulation Voltage690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1
Threshold Tripping Voltage0.7...0.35 Un
On-Load Factor100 %
Operating Time10...15 ms IEC 60947-1
Width18 mm
Inrush Power In W8 W
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant
Specifications
- Product Or Component Type
- safety undervoltage trip
- Device Short Name
- GVAX
RangeTeSys || TeSys Deca
Contractual warranty
- Warranty
- 18 months
