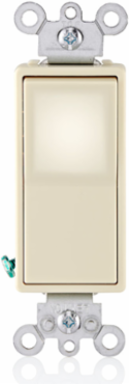

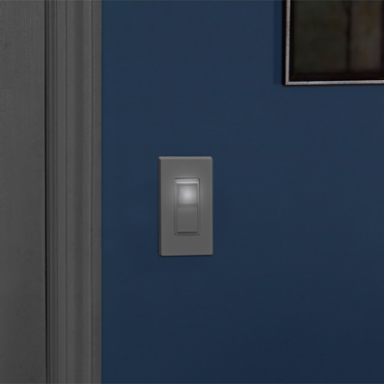

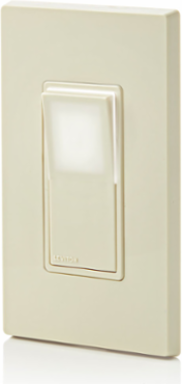

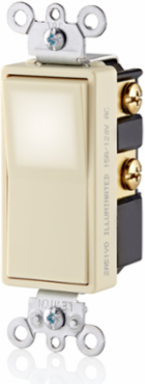

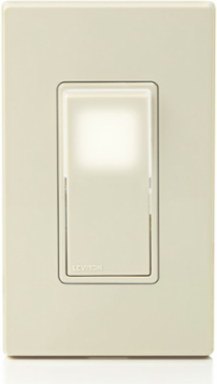

Leviton L5614-2T Decora LED Illuminated Rocker 4-Way Switch, 15 Amp, 120/277 Volt, Light Almond
- MPN: L5614-2T
- UPC: 078477187432
- PPN: LEV-L5614-2T
CAD
$71.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120/277 Volt, Decora LED Illuminated Rocker Single 4-Way AC Quiet Switch, Residential Grade, Grounding - Light Almond
Features
- Designed to work with LED, CFL and incandescent bulbs, no neutral required
- Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Decora model compatible with Decora wallplates and Decora Plus™ screwless wallplates, wallplates sold separately
- Features Back and Side wiring for easy installation
- Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Complements every décor
- Ideal solution for bathrooms, bedrooms, hallways, staircases, basements, laundry/utility rooms and garages.
- Limited 2-year warranty
- CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box
- PERFORMANCE - Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE - Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN - White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT - Replaces any standard 4-Way switch; controls light(s) from multiple locations
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- NOM
- NOM
UL StandardcULus
Material Specifications
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
Body MaterialThermoplastic
Mechanical Specifications
- Terminal Accom.
- Side Wire #14-#12 AWG
- Torque Range
- 14 – 18 in.-lbs
TerminationSide Wire & Back Wire
TypeLED Illuminated Switch
Product Features
- Amperage
- 15 A
- Device Type
- Rocker Switch
- Grade
- Residential
- HP Rating
- 1/2HP-120V 2HP-240V-277V
- LED Color Temperature
- 6000K
- Pole
- 4
ColorLight Almond
FeatureIlluminated
GroundingGrounding
Illumination ColorWhite
Max. Amperage12 Amp
Voltage120/277 VAC
Warranty
- Warranty
- 2-Year Limited
