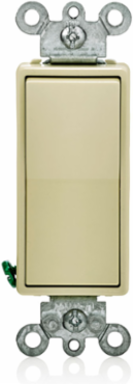

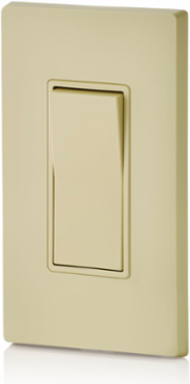

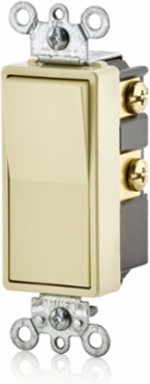

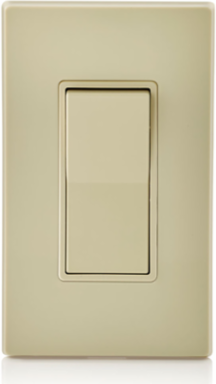

Leviton 5604-2I 15 Amp Decora Rocker 4-Way Switch, Grounding, Ivory, 120/277 Volt
Leviton 5604-2I 15 Amp Decora Rocker 4-Way Switch, Grounding, Ivory, 120/277 Volt
- MPN: 5604-2I
- UPC: 078477882665
- PPN: LEV-5604-2I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$19.09/ EA
Description
15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding - Ivory
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads. Motor capacity is 80% of switch rating
- Compliments ever décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT – Quiet 4-way switch that controls load from 3 locations
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side and back wiring for easy installation
- COMPATIBLE – For use with Leviton Decora wallplates
Specifications
Product Features
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic Polyester
- Grounding
- Grounding
- Max. Amperage
- 12 Amp
- Standards and Certifications
- UL/CSA
- Termination
- Side Wire & Back Wire
- Type
- Rocker Switch
- Warranty
- 2-Year Limited
Amperage15 A
ColorIvory
HP Rating1/2HP-120V 2HP-240V-277V
Pole4
Strap MaterialSteel
Torque Range14 – 18 in.-lbs
Voltage120/277 VAC
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
