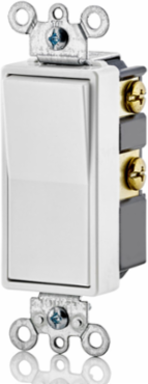

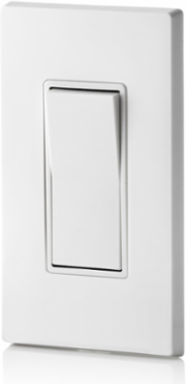

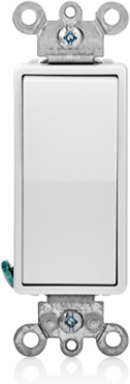

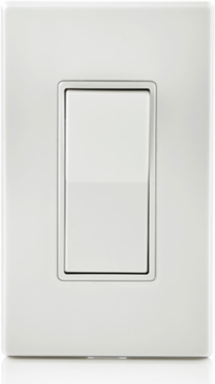

Leviton 5604-2W 15 Amp Decora Rocker 4-Way Switch, 120/277 Volt, Grounding, White
- MPN: 5604-2W
- UPC: 078477882672
- PPN: LEV-5604-2W
CAD
$19.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding - White
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads. Motor capacity is 80% of switch rating
- Compliments ever décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT – Quiet 4-way switch that controls load from 3 locations
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side and back wiring for easy installation
- COMPATIBLE – For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 1/2 HP at 120V, 2 HP at 240/277V
- Torque Range
- 14–18 in.-lbs
- Pole
- 4
- Termination
- Side Wire & Back Wire
- Body Material
- Thermoplastic
- Standards and Certifications
- UL/CSA
- Color
- White
Voltage120/277 VAC
Max Amperage12 Amp
TypeRocker Switch
GroundingGrounding
Actuator MaterialThermoplastic
Strap MaterialSteel
RoHS CompliantTrue
Country of OriginMexico
