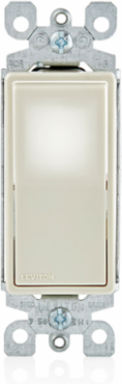

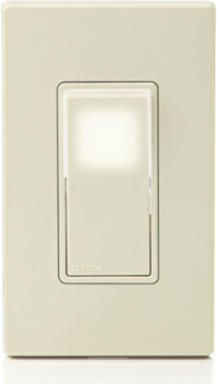

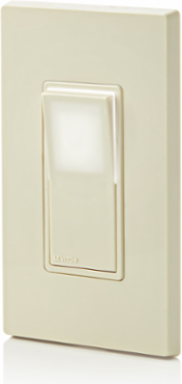

Leviton L5611-2T Decora LED Illuminated Rocker Switch, 15 Amp, 120/277 Volt, Light Almond
Leviton L5611-2T Decora LED Illuminated Rocker Switch, 15 Amp, 120/277 Volt, Light Almond
- MPN: L5611-2T
- UPC: 078477681985
- PPN: LEV-L5611-2T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.88/ EA
Description
15 Amp, 120/277 Volt, Decora LED Illuminated Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding - Light Almond
Features
- Designed to work with LED, CFL and incandescent bulbs, no neutral required

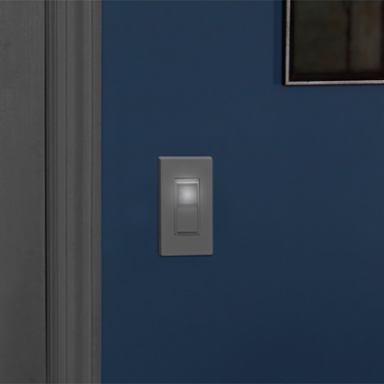

- Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Decora model compatible with Decora wallplates and Decora Plus™ screwless wallplates, wallplates sold separately

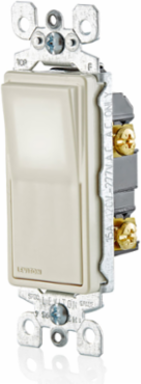

- Features Quickwire push-in, Back and Side wiring for easy installation
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Back and side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Complements every décor
- Ideal solution for bathrooms, bedrooms, hallways, staircases, basements, laundry/utility rooms and garages.
- Limited 2-year warranty
- CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box
- PERFORMANCE – Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE – Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN – White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT – Replaces any standard single-pole switch; controls light(s) from one location
Specifications
Standards and Certifications
- NOM
- NOM
UL StandardcULus
Material Specifications
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
Body MaterialThermoplastic
Mechanical Specifications
- Terminal Accom.
- Back & Side Wire #14-#12 AWG; Quickwire #14 AWG Solid copper wire only
- Torque Range
- 14 – 18 in.-lbs
TerminationSide Wire, Back Wire, Quickwire Push-In
TypeLED Illuminated Switch
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Device Type
- Rocker Switch
- Grade
- Residential
- HP Rating
- 1/2HP-120V 2HP-240V-277V
- LED Color Temperature
- 6000K
- Pole
- 1
ColorLight Almond
FeatureIlluminated
GroundingGrounding
Illumination ColorWhite
Max. Amperage12 Amp
Voltage120/277 VAC
Warranty
- Warranty
- 2-Year Limited
