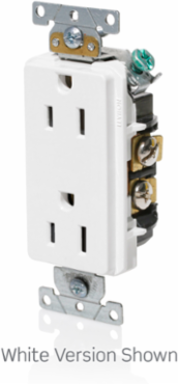

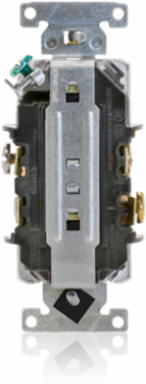

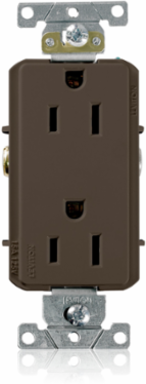

Leviton 16252 15 Amp Industrial Grade Decora Plus Duplex Receptacle, 125 Volt, NEMA 5-15R, Self-Grounding
- MPN: 16252
- UPC: 078477819661
- PPN: LEV-16252
CAD
$4.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- At Rated Voltage
- 1/2 HP
- RoHS
- RoHS Compliant
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2 No.42
Certification/ListingcULus, NON-ANCE
Warranty10-Year Limited
Material Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Terminal Screws
- #8 Triple-Drive Brass
ColorBrown
Ground ClipsBrass-Plated
Line Contacts0.030" Phosphor Bronze
Strap MaterialSteel (Galvanized G60)
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
TerminationBack and Side Wire
Mechanical Specifications
- Brand
- Decora Plus
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back and Side Wire
ColorBrown
Feature 4Smooth Face
NEMA5-15R
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- CSA C22.2 No. 42
- File LR-406
- UL498
- File E13399
NOM057
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Color
- Brown
- Flammability
- Rated V-2 per UL 94
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Operating Temperature
- -40°C to 60°C
- Terminal Screws
- #8 Triple-Drive Brass
Clamp NutsZinc-Plated Steel
Face MaterialPBT Polyester Blend
Ground ClipsBrass-Plated
Line Contacts0.030" Phosphor Bronze
Strap MaterialSteel (Galvanized G60)
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 3000V min
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Temperature RiseMax 30°C temperature rise at full rated current
Wire3
AC Horsepower Ratings
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30°C temperature rise at full rated current
- Wire
- 3
At Rated Voltage1/2 HP
Dielectric VoltageWithstands 3000V min
Pole2
Voltage125 VAC
