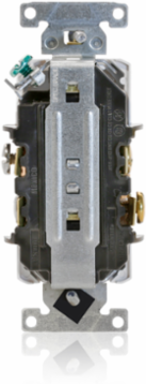

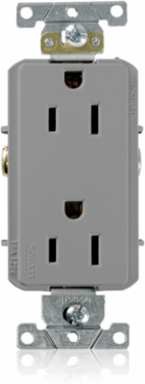

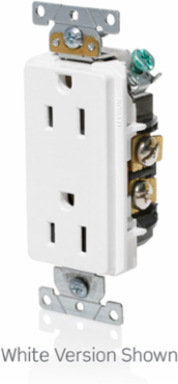

Leviton 16252-GY 15 Amp Self-Grounding Duplex Receptacle Outlet, Industrial Grade, 125 Volt
- MPN: 16252-GY
- UPC: 078477819692
- PPN: LEV-16252-GY
CAD
$4.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| At Rated Voltage | 1/2 HP |
| RoHS | RoHS Compliant |
| Applicable Standards | UL 498, Fed Spec W-C-596, CSA C22.2 No.42 |
|---|---|
| Certification/Listing | cULus, NON-ANCE |
| Warranty | 10-Year Limited |
Material Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Face Material | PBT Polyester Blend |
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Terminal Screws | #8 Triple-Drive Brass |
| Color | Gray |
|---|---|
| Ground Clips | Brass-Plated |
| Line Contacts | 0.030" Phosphor Bronze |
| Strap Material | Steel (Galvanized G60) |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back and Side Wire |
Mechanical Specifications
| Brand | Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Commercial Specification Grade |
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Termination | Back and Side Wire |
| Color | Gray |
|---|---|
| Feature 4 | Smooth Face |
| NEMA | 5-15R |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| UL498 | File E13399 |
| NOM | 057 |
|---|
Environmental Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Color | Gray |
| Flammability | Rated V-2 per UL 94 |
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Operating Temperature | -40°C to 60°C |
| Terminal Screws | #8 Triple-Drive Brass |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass-Plated |
| Line Contacts | 0.030" Phosphor Bronze |
| Strap Material | Steel (Galvanized G60) |
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 3000V min |
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Temperature Rise | Max 30°C temperature rise at full rated current |
| Wire | 3 |
AC Horsepower Ratings
| Amperage | 15 A |
|---|---|
| Current Limiting | Full Rated Current |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30°C temperature rise at full rated current |
| Wire | 3 |
| At Rated Voltage | 1/2 HP |
|---|---|
| Dielectric Voltage | Withstands 3000V min |
| Pole | 2 |
| Voltage | 125 VAC |
