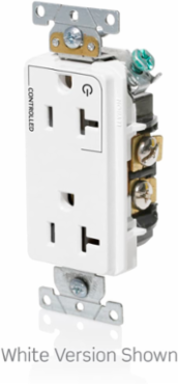

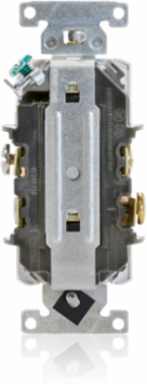

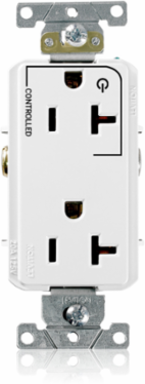

Leviton 16352-1PW 20 Amp Duplex Receptacle Outlet, Industrial Grade, Self-Grounding, NEMA 5-20R
- MPN: 16352-1PW
- UPC: 078477704851
- PPN: LEV-16352-1PW
CAD
$28.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Split-Circuit, One Outlet Marked "Controlled", Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- UL, CSA, NOM-ANCE
Applicable StandardsUL 498, CSA C22.2 No. 42
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Nylon
- Ground Clips
- Brass
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Terminal Clamp
- Zinc-Plated Steel
Face MaterialNylon
Grounding ScrewZinc-Plated Steel 8-32
Strap MaterialZinc-Plated Steel 0.042
Terminal ScrewsBrass 10-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire TypeSolid or Stranded Building Wire
Product Features
- Brand
- Decora Plus
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
ColorWhite
FeatureSplit-circuit, One Outlet Marked "Controlled"|Smooth Face
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Voltage
- 125 VAC
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
