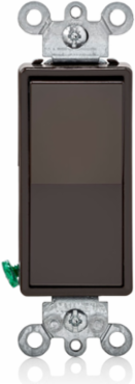

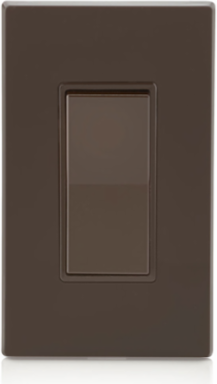

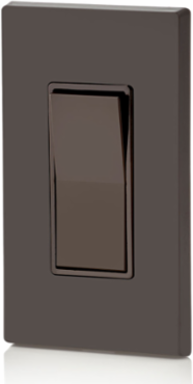

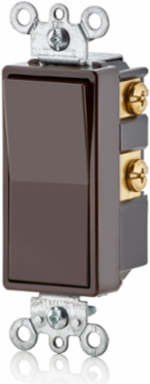

Leviton 5604-2 15 Amp Decora Rocker 4-Way Switch, Grounding, Mahogany, UL/CSA Certified
- MPN: 5604-2
- UPC: 078477882719
- PPN: LEV-5604-2
CAD
$19.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding - Mahogany
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads. Motor capacity is 80% of switch rating
- Compliments ever décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT – Quiet 4-way switch that controls load from 3 locations
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side and back wiring for easy installation
- COMPATIBLE – For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Actuator Material | Thermoplastic |
|---|---|
| Body Material | Thermoplastic |
| Grounding | Grounding |
| Max. Amperage | 12 Amp |
| Standards and Certifications | UL/CSA |
| Termination | Side Wire & Back Wire |
| Type | Rocker Switch |
| Warranty | 2-Year Limited |
| Amperage | 15 A |
|---|---|
| Color | Mahogany |
| HP Rating | 1/2HP-120V 2HP-240V-277V |
| Pole | 4 |
| Strap Material | Steel |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 120/277 VAC |
