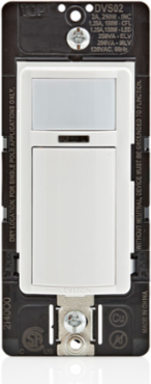

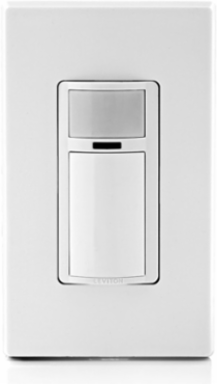

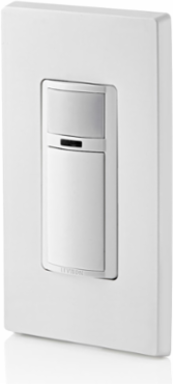

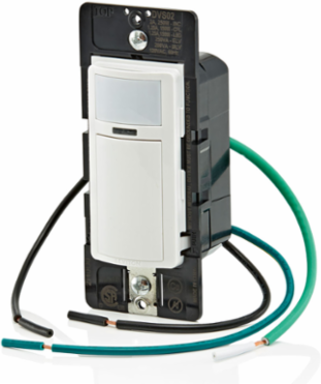

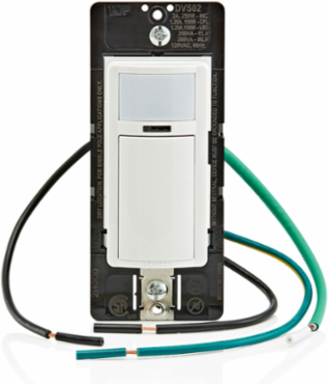

Leviton DVS02-1LW Decora Vacancy Motion Sensor Light Switch, 180° Field-of-View, 2A, White
- MPN: DVS02-1LW
- UPC: 078477572580
- PPN: LEV-DVS02-1LW
CAD
$41.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Vacancy Motion Sensor Light Switch. 180° PIR manual-on, automatic-off, single pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements – White
Features
- Manual ON/Automatic OFF operation
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage
- Provides 180° Field-of-View, 900 sq. ft. of coverage
- Shallow design easily fits in the wallbox and can replace a single pole switch
- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Interchangeable line and load wires
- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements
- Color change kits are available
- Five-Year Limited warranty
- CONVENIENT – Turns lights OFF automatically when room is vacant
- EASY TO INSTALL – Slim profile fits in most wallboxes
- FLEXIBLE – Can be installed with or without a neutral wire
- PRACTICAL – Perfect for bathrooms, hallways and kids’ bedrooms
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Auto-ON/Auto-OFF
- No
- Color
- White
- Grade
- Residential
- Load Rating
- 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive
- Neutral
- Optional
- Sensor Technology
- Passive Infrared
- Standards and Certifications
- CSA, FCC, Title 24
- Switch
- Relay
- Voltage
- 120 VAC
- Warranty
- 5-Year Limited
California Title 24Yes
Coverage (Sq.Ft.)180°, 900 Sq. Ft
LED ColorGreen and Red
Mounting TypeWall Switch
Pole1
Sensor TypeVacancy
Style NameDecora
Time Delay1M, 5M, 10M, 20M
WallplateNot Included
WiringGround or Neutral Required
