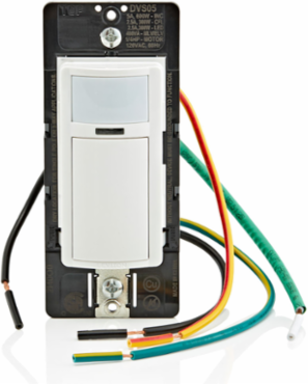

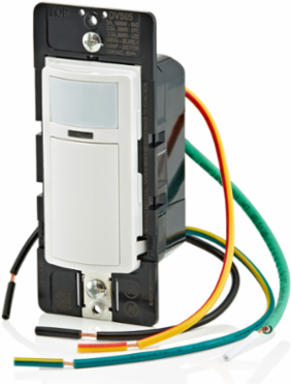

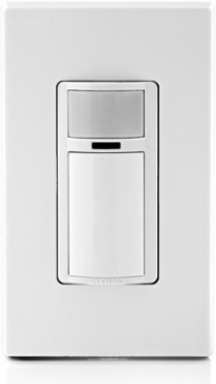

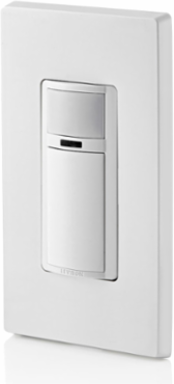

Leviton DVS05-1LZ Decora Vacancy Motion Sensor Light Switch, 5A, 300W LED/CFL, 600W Incandescent, 900 Sq. Ft
- MPN: DVS05-1LZ
- UPC: 078477572597
- PPN: LEV-DVS05-1LZ
CAD
$64.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

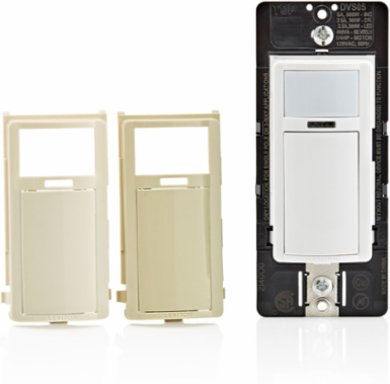

Decora Vacancy Motion Sensor Light Switch. 180° PIR manual-on, automatic-off, wallbox sensor, single pole or 3-way when used with a single pole or 3-way switch, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, ¼ HP Motor, 5A Resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements – White with ivory and light almond faceplates included
Features
- Manual-ON/Automatic OFF operation
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage or Motor Loads
- Provides 180° Field-of-View, 900 sq. ft. of coverage
- Shallow design easily fits in the wallbox and can replace single pole switch
- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Interchangeable line and load wires
- Single pole or 3-way when used with a single pole or 3-way switch
- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements
- Color change kits are available
- Five-Year Limited warranty
- CONVENIENT – Turns lights OFF automatically when room is vacant
- EASY TO INSTALL – Slim profile fits in most wallboxes
- FLEXIBLE – Can be installed with or without a neutral wire
- PRACTICAL – Perfect for bathrooms, hallways and kids’ bedrooms
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Auto-ON/Auto-OFF
- No
- Color
- White, Ivory, Light Almond
- Grade
- Residential
- Load Rating
- 300W LED/CFL, 600W Incandescent/Halogen, 1/4 HP, 400VA ELV, MLV, 5A Resistive
- Neutral
- Optional
- Pole
- 3
- Sensor Type
- Vacancy
- Style Name
- Decora
- Time Delay
- 1M, 5M, 10M, 20M
- Wallplate
- Not Included
- Wiring
- Ground or Neutral Required
California Title 24Yes
Coverage (Sq.Ft.)180°, 900 Sq. Ft
LED ColorGreen and Red
Mounting TypeWall Switch
Ordering NotesIncludes White, Light Almond and Ivory Color Change Kit
Sensor TechnologyPassive Infrared
Standards and CertificationsCSA, FCC, Title 24
SwitchRelay
Voltage120 VAC
Warranty5-Year Limited
