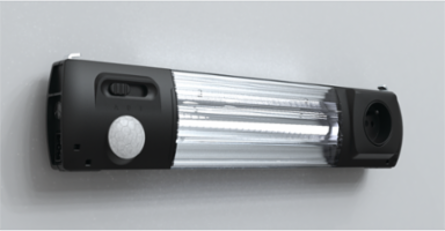

nVent Hoffman EL1200MS-US LED Enclosure Light with Motion Sensor, 2.99 x 14.33 x 1.89 Inch, 1200 lm, Black
- MPN: EL1200MS-US
- UPC: 783510479121
- PPN: HOF-EL1200MS-US
- UNSPSC: 39121321
CAD
$648.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
LED Enclosure Light with quick-install feature allows fitting to the 25mm hole pattern of enclosure profiles. This EL LED Light With Socket and Motion Sensor B, 100-240V, EL1200MS-US item measures 76x364x48mm with a material of Plastic color Black.
Features
- Description: LED enclosure light specially designed for nVent HOFFMAN enclosures. Fast and tool-free assembly thanks to a latching hook system designed to fit the 25mm hole pattern on nVent HOFFMAN enclosures. May be fitted horizontally or vertically.
- Please be advised that when using the clamp mechanism to mount these lights, they cannot be installed on the top rail of ProLine and ProLine G2 cabinet frames.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 364 |
| Works With | IEC |
| Product Family | IEC General Accessories |
| Socket Type | Type B |
| Light Output | 1,200 |
| Light Color | Neutral White |
| Nominal Voltage | 115 |
| Hertz | 50/60 |
| Operating Temperature | -20 |
| Weight | 0.7 |
| Socket Included | Yes |
| Size | 2.99 x 14.33 x 1.89 inch |
| Construction | EL LED Enclosure Light With Socket and Motion Sensor, 1200 lm, 100-125 VAC |
| Height (H) | 76 |
|---|---|
| Depth (D) | 48 |
| Protection Rating | IP20 |
| Finish | Smooth |
| Lamp Type | LED |
| Color Temperature | 4,000 |
| Power | 12 |
| Input Voltage AC | 100 |
| Connection Type | 3 Pole |
| On-State Current | 120 |
| Motion Sensor Included | Yes |
| Material | Plastic |
| Color | Black |
| Consist of | Light 1200lm Motion + Socket |
